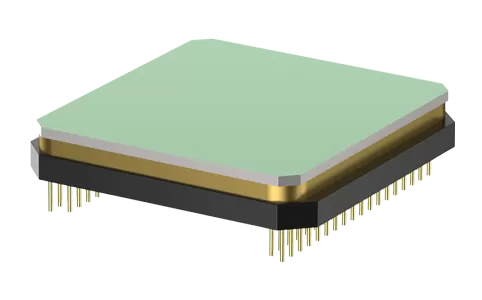

The Super1212C is a large-format uncooled infrared thermal imaging detector featuring a high-definition resolution of 1280×1024 megapixels and a 12μm pixel size. It delivers fine image details and clear imaging quality, with optimized sensitivity and overall performance. Supporting a maximum frame rate of 50Hz, it enables smooth infrared observation by offering a professional and reliable thermal imaging solution for high-end applications such as industrial inspection, critical infrastructure surveillance, intelligent manufacturing, and scientific research.
1280×1024 high-definition resolution for an expansive field of view
12μm small pixel size ensures higher spatial resolution, enabling long-range target identification and detection
TEC-free operation for compact and lightweight experience
High detection sensitivity and clear imaging at a competitive price point
Typical NETD<35mK, capable of distinguishing subtle temperature differences
Typical power consumption <400mW, ideal for various low-power application scenarios
| Model | Super1212C |
| Sensitive Material | VOx |
| Package | Ceramic |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Response | 8μm~14μm |
| NETD | ＜35mK |
| Output Signal | Built-in 14 bits ADC |
| Thermal Response Time | ﹤12ms |
| Max. Frame Rate | 50Hz |
| Power Consumption | ﹤400mW |
| Size(mm) | 31×31×5.1(Without Pin) |
| Weight(g) | ﹤15 |
| Operating Temperature | -40℃ ~ +85℃ |
