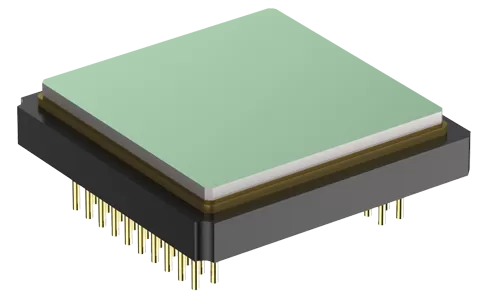

The Super412C uncooled infrared detector adopts ceramic packaging technology, significantly enhancing detection sensitivity and overall performance. It excels in identifying temperature anomalies, improving safety and operational efficiency. The high-reliable and high-performance thermal solution is a cost-effective choice for users who have diversified demand in different fields.
No TEC cooling required, fast thermal response
High sensitivity for clear imaging, excellent value for money
High detection sensitivity, typical NETD < 35mK
High-definition and smooth imaging with frame rates up to 50Hz
Power consumption: <150mW
Extends device battery life, suitable for a wide range of applications
| Model | Super412C |
| Sensitive Material | VOx |
| Package | Ceramic |
| Resolution | 400×300 |
| Pixel Size | 12μm |
| Spectral Response | 8μm~14μm |
| NETD | ﹤35mK |
| Output Signal | Built-in 14 bits ADC |
| Thermal Response Time | ﹤12ms |
| Max. Frame Rate | 50Hz |
| Power Consumption | ≤150mw |
| Size(mm) | 18.5×18.5×3.78 |
| Weight(g) | ﹤4.5 |
| Operating Temperature | -40℃ ~ +85℃ |
High Detection Sensitivity, Typical NETD < 30mK
Energy Efficient:<180mW
Lightweight Structure
