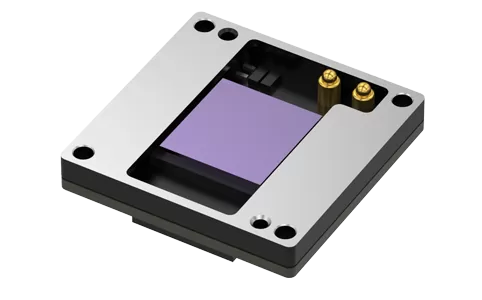

The Super412W uncooled infrared detector is specifically designed for consumer-grade infrared applications and large-scale adoption. Featuring wafer-level packaging technology, it offers significant advantages in compact size, lightweight design, and ultra-low power consumption. This makes it an ideal integrated infrared solution for scaling thermal imaging technology across a wide range of applications, from consumer electronics to industrial infrared imaging systems.
Compact size and lightweight design for easy integration into space-constrained devices
Low-power operation supports extended runtime for portable devices
Optimized for mass production and cost efficiency, ideal for large-scale applications
Power consumption: <110mW
Prolongs device battery life, adaptable to a wide range of application scenarios
High detection sensitivity with typical NETD<40mK
Delivers clear imaging and accurate temperature measurement
| Model | Super412W |
| Sensitive Material | VOx |
| Package | Wafer-Level |
| Resolution | 400×300 |
| Pixel Size | 12μm |
| Spectral Response | 8μm~14μm |
| NETD | ﹤40mK |
| Output Signal | Built-in 14 bits ADC |
| Thermal Response Time | ﹤12ms |
| Max. Frame Rate | 50Hz |
| Power Consumption | ﹤110mW |
| Size(mm) | 17.3×17.3 |
| Weight(g) | ﹤2 |
| Operating Temperature | -40℃ ~ +85℃ |
