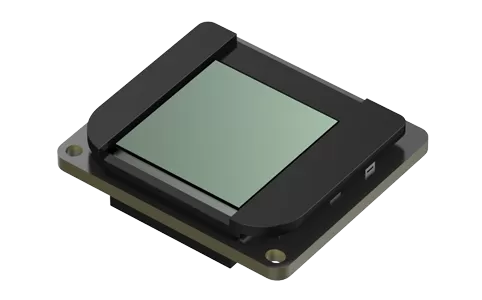

The Super417W uncooled infrared detector is designed for consumer markets and widespread applications. It adopts advanced Wafer-Level Packaging (WLP) technology, enabling a streamlined manufacturing process, compact size, and reduced costs, further simplifying mass integration of SWaP³ devices.
Compact size and lightweight design for easy integration into space-constrained devices
Low-power operation supports extended runtime for portable devices
Optimized for mass production and cost efficiency, ideal for large-scale applications
Power consumption: <180mW
Prolongs device battery life, adaptable to a wide range of application scenarios
High detection sensitivity with typical NETD<40mK
Delivers clear imaging and accurate temperature measurement
| Model | Super417W |
| Sensitive Material | VOx |
| Package | Wafer-Level |
| Resolution | 400×300 |
| Pixel Size | 17μm |
| Spectral Response | 8μm~14μm |
| NETD | ＜40mK |
| Output Signal | Built-in 14 bits ADC |
| Thermal Response Time | ﹤12ms |
| Max. Frame Rate | 50Hz |
| Power Consumption | ﹤180mW |
| Size(mm) | 18×16 |
| Weight(g) | ﹤2 |
| Operating Temperature | -40℃~ +85℃ |
High Detection Sensitivity, Typical NETD < 30mK
Energy Efficient:<180mW
Lightweight Structure
