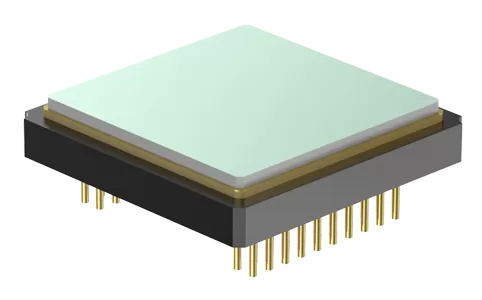

The ceramic-packaging Super612C uncooled infrared detector features mainstream resolution that offers superb clarity. The detector is a combination of high performance, low power consumption, compact size, lightweight structure, and excellent reliability, offering a strong balance between detection sensitivity and overall performance. The lightweight design of core components enables more compact and efficient thermal imaging modules, delivering a high-quality, cost-effective infrared solution for a wide range of detection and temperature measurement applications.
TEC-free operation for compact and lightweight experience
High sensitivity for clear imaging, excellent value for money
High detection sensitivity, typical NETD<30mK
High-definition and smooth imaging with frame rates up to 50Hz
Power consumption: <150mW
Extends device battery life, suitable for a wide range of applications
| Model | Super612C |
| Sensitive Material | VOx |
| Package | Ceramic |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Response | 8μm~14μm |
| NETD | ﹤35mK |
| Output Signal | Built-in 14 bits ADC |
| Thermal Response Time | ﹤12ms |
| Max. Frame Rate | 50Hz |
| Power Consumption | ﹤150mW |
| Size(mm) | 18.5×18.5×3.78 |
| Weight(g) | ﹤4.5 |
| Operating Temperature | -40℃ ~ +85℃ |
High Detection Sensitivity, Typical NETD < 30mK
Energy Efficient:<180mW
Lightweight Structure
