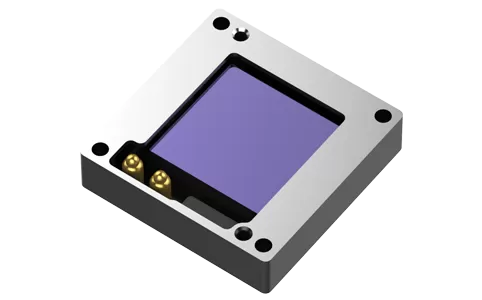

Featuring wafer-level packaging technology, the Super612W uncooled infrared detector boasts significant advantages in compact size, lightweight design, and ultra-low power consumption. With a mainstream focal plane array, it delivers clear and precise thermal detection. This makes it an ideal integrated infrared solution for scaling thermal imaging applications across a wide range—from household to professional-grade use.
Compact size and lightweight design for easy integration into space-constrained devices
Low-power operation supports extended runtime for portable devices
Optimized for mass production and cost efficiency, ideal for large-scale applications
Power consumption: <150mW
Prolongs device battery life, adaptable to a wide range of application scenarios
Typical NETD<40mK
Delivers clear imaging and accurate temperature measurement
| Model | Super612W |
| Sensitive Material | VOx |
| Package | Wafer-Level |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Response | 8μm~14μm |
| NETD | ﹤40mK |
| Output Signal | Built-in 14 bits ADC |
| Thermal Response Time | ﹤12ms |
| Max. Frame Rate | 50Hz |
| Power Consumption | ﹤150mW |
| Size(mm) | 17.3×17.3 |
| Weight(g) | ＜2.5g |
| Operating Temperature | -40℃ ~ +85℃ |
