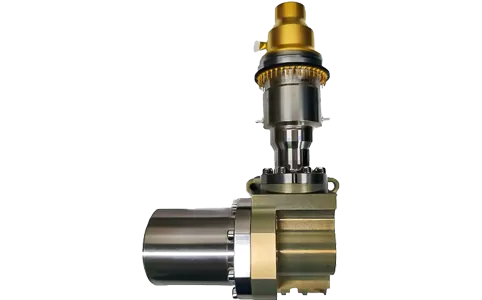

Built on advanced linear cryocooler technology, the C1207H HOT cooled infrared detector features a 1280×1024 megapixel resolution with an industry-leading 7.5μm pixel size. While ensuring excellent performance, its focal plane operating temperature is increased to 150K, delivering outstanding SWaP (small size, light weight, low power consumption) performance. It fully meets market demands for long-duration operation, compact system integration, and high-definition thermal imaging.
1280×1024 megapixel resolution for a wide field of view
7.5μm small pixel size for high spatial resolution and long-range detection
Cooling time as low as 3 minutes
Stable power consumption down to 3W
MTTF up to 25,000 hours
| Model | C1207H HOT MWIR Cooled Infrared Detector |
| Sensitive Material | T2SL |
| Resolution | 1280×1024 |
| Pixel Size | 7.5μm |
| Spectral Response | 3.7±0.2μm~4.8±0.2μm |
| Typical NETD | 35mK |
| Max. Frame Rate | 100Hz |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Operating Temperature | -45℃~+71℃ |
| Cryocooler | LS711H |
| Cooling Time(23℃) | ≤3min |
| Max. Power Consumption(71℃) | ≤12W |
| Steady Power Consumption(23℃) | ≤3W |
| Size(mm) | Cryocooler: φ26×55.8 |
| Dewar: 33×37.5×70 | |
| Weight(g) | ≤235 |
