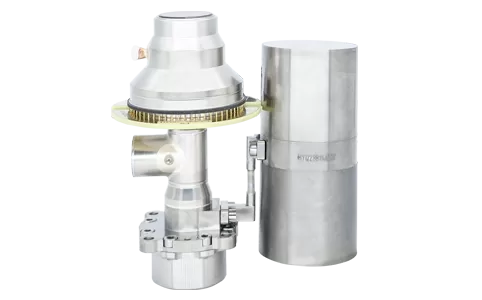

Built on advanced linear cryocooler technology, the C1210H HOT cooled infrared detector features a 1280×1024 megapixel resolution with a 10μm pixel size. While ensuring excellent performance, its focal plane operating temperature is increased to 150/160K, delivering outstanding SWaP (small size, light weight, low power consumption) performance. It fully meets market demands for long-duration operation, compact system integration, and high-definition thermal imaging.
1280×1024 megapixel resolution for a wide field of view
10μm small pixel size for high spatial resolution and long-range detection
Cooling time as low as 3 minutes
Stable power consumption down to 3W
Mean Time To Failure (MTTF) up to 25,000 hours
| Model | C1210H HOT MWIR Cooled Infrared Detector |
| Sensitive Material | T2SL |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 3.7±0.2μm~4.8±0.2μm |
| Typical NETD | 20mK (F2)/25mK(F4) |
| Max. Frame Rate | 100Hz |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Operating Temperature | -45℃~+71℃ |
| Cryocooler | LS713 |
| Cooling Time(23℃) | ≤3min |
| Max. Power Consumption(71℃) | ≤20W |
| Steady Power Consumption(23℃) | ≤3W |
| Size(mm) | Cryocooler: φ33.5×72.5 |
| Dewar: 34×34×86 | |
| Weight(g) | ≤355 |
