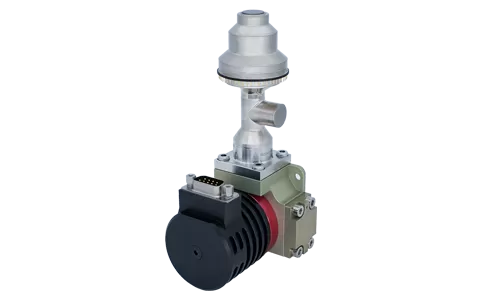

The C1210M HD MWIR thermal detector features a 1280×1024 megapixel focal plane array with a 10μm industry-leading pixel size. While maintaining the same overall system size and weight, it offers a focal plane area over 70% larger than that of traditional 640×512/15μm detectors. This translates into a significantly wider field of view and extended detection range. Designed to meet the high-quality imaging requirements of specialized users, the C1210M is an ideal choice for long-range detection platforms and next-generation electro-optical system upgrades.
1280×1024 megapixel resolution for a wide field of view
10μm pixel size enables higher spatial resolution and longer detection range
Excellent image uniformity with ≥99.5% effective pixel rate
High sensitivity for precise target detection
Customizable F-number
Consistent quality in mass production
| Model | C1210M HD MWIR Cooled Infrared Detector |
| Sensitive Material | MCT |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| Working Mode | Snapshot ITR/IWR Integration Modes Windows Mode Anti-blooming |
| Charge Capacity | 5.25Me-(IWR/ITR) |
| Dynamic Range | 76dB |
| Output Channel | 4 or 8 Channels; Up to 20MHz per output |
| Max. Frame Rate | 100Hz |
| Typical NETD | 20mK(F2/F4) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Configurable Cryocooler | RS058N |
| Steady Power Consumption(23℃) | ≤7W |
| Max. Power Consumption(71℃) | ≤17W |
| Power Supply | 24V DC |
| Cooling Time(23℃) | ≤6min |
| Maximum Size (mm) | 143.5×58.5×71 |
| Weight(g) | ≤600 |
| Operating Temperature | -45℃～+71℃ |
