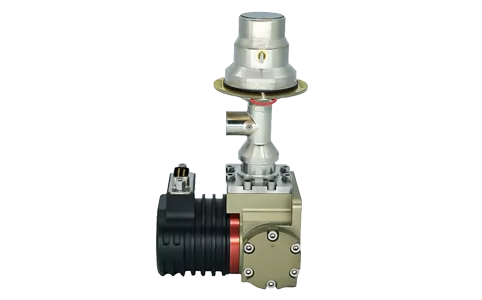

The C1210S HD LWIR cooled infrared detector is developed using an industry-leading Type-II Superlattice technology, featuring a 1280×1024 resolution with an industry-leading 10μm pixel size. It is specifically designed for high-performance long-wave infrared (7.7–9.4μm) detection, offering high quantum efficiency, high frame rate, high sensitivity, low noise, and excellent non-uniformity. Compared with traditional 640×512/15μm LWIR products, the pixel size is reduced by one-third while the resolution is increased fourfold, witnessing higher spatial resolution and sharper infrared imaging. The C1210S features outstanding resistance to dust and reflection interference, making it ideal for target detail recognition in a wide range of complex environments.
Strong penetration capability in sand and dust, adaptable to complex environments
Unaffected by glare in strong sunlight or on water surfaces
Enhanced capability to detect low-temperature objects
Higher quantum efficiency with superior sensitivity
Low noise and excellent non-uniformity
Customizable F-number
Consistent quality in mass production
| Model | C1210S HD LWIR Cooled Infrared Detector |
| Sensitive Material | T2SL |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 7.7μm±0.2μm～9.4μm±0.3μm |
| Working Mode | Snapshot ITR Integration Mode Windows Mode Anti-blooming |
| Charge Capacity | 5.25Me- |
| Dynamic Range | 76dB |
| Output Channel | 4 or 8 Channels; Up to 20MHz per output |
| Max. Frame Rate | 100Hz |
| Typical NETD | 35mK(F2) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Configurable Cryocooler | RS079G |
| Steady Power Consumption(23℃) | ≤10W |
| Max. Power Consumption(71℃) | ≤30W |
| Power Supply | 24V DC |
| Cooling Time(23℃) | ≤5min |
| Maximum Size (mm) | 154×59×78 |
| Weight(g) | ≤650 |
| Operating Temperature | -45℃~+71℃ |
