Featuring a 1280×1024 megapixel focal plane array with a widely adopted 12μm pixel pitch, the C1212M offers four times the pixel count of traditional 640×512/15μm detectors over the same target area, which results in a wider field of view and richer target details. When paired with shorter focal length optics, it achieves the same detection range, making it an ideal choice for long-range detection and detailed image recognition.
1280×1024 megapixel resolution for a wide field of view
Mainstream pixel size that has high spatial resolution and long detection range
Excellent image uniformity with ≥99.5% effective pixel rate
High sensitivity for precise target detection
Customizable F-number
Consistent quality in mass production
| Model | C1212M HD MWIR Cooled Infrared Detector | |
| Sensitive Material | MCT | |
| Resolution | 1280×1024 | |
| Pixel Size | 12μm | |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm | |
| Working Mode | Snapshot ITR/IWR Integration Modes Windows Mode Anti-blooming | |
| Charge Capacity | 6.75Me-/4.8Me-(ITR) 5.25Me-/3.3Me-(IWR) | |
| Dynamic Range | ITR Mode≥80dB IWR Mode≥76dB | |
| Output Channel | 4 or 8 Channels; Up to 20MHz per output | |
| Max. Frame Rate | 100Hz | |
| Typical NETD | 18mK(F2/F4) | |
| Effective Pixel Rate | ≥99.5% | |
| Response Non-uniformity | ≤8% | |

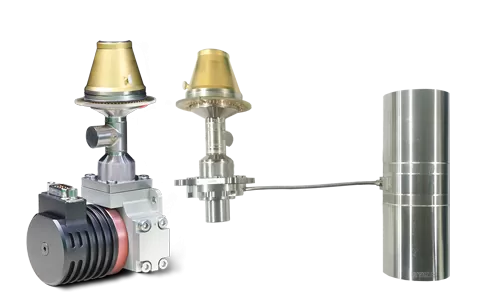

| Configurable Cryocooler | RS058F | LS734 |

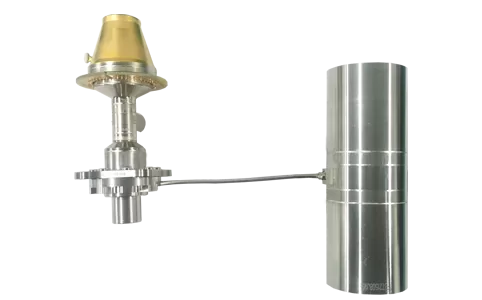

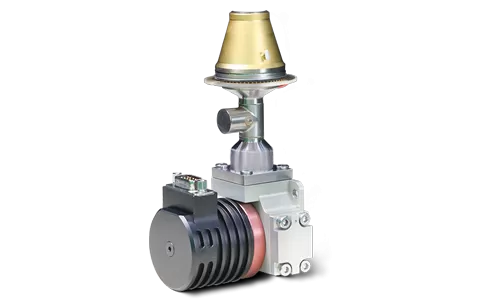

| Cryocooler Type | Rotary Stirling Cryocooler | Linear Stirling Cryocooler |
| Steady Power Consumption(23℃) | ≤7W | ≤10W |
| Max. Power Consumption(71℃) | ≤17W | ≤45W |
| Power Supply | 24V DC | 24V DC |
| Cooling Time(23℃) | ≤6min | ≤4min |
| Maximum Size (mm) | 149×58.5×71 | Compressor Φ46×122 Dewar Φ55×119 |
| Weight(g) | ≤600 | ≤1200 |
| Operating Temperature | -45℃～+71℃ | |
