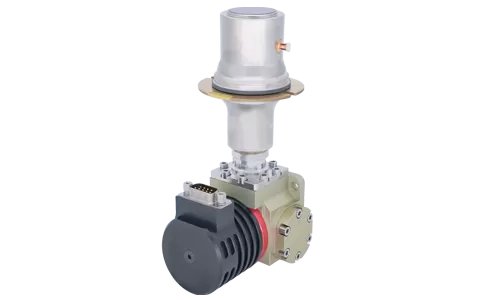

The C1215M HgCdTe (MCT) MWIR cooled infrared detector features a 1280×1024 megapixel focal plane array with a mainstream 15μm pixel size. Its sensitive chip area and pixel count are four times that of traditional 640×512/15μm detectors. Combining high resolution, high performance, and high reliability, it delivers sharp imaging with delicate detail, enabling a wider field of view and richer target information. It fully meets the urgent demand for high-sensitivity detection in specific application scenarios.
1280×1024 megapixel resolution with a wide and expansive field of view
15μm pixel size captures more thermal information, enabling longer-range detection
Excellent image uniformity with an effective pixel rate ≥99.5%
Higher sensitivity for improved detection efficiency
Customizable F-number
Plug-and-play interchangeable with imported detectors
| Model | C1215M MWIR Cooled Infrared Detector |
| Sensitive Material | MCT |
| Resolution | 1280×1024 |
| Pixel Size | 15μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| Working Mode | Snapshot ITR/IWR Integration Modes Windows Mode Anti-blooming |
| Charge Capacity | 5.3Me-(ITR) 4.6Me-(IWR) |
| Output Channel | 4 or 8 Channels; Up to 20MHz per output |
| Max. Frame Rate | 100Hz |
| Typical NETD | 18mK(F2) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Configurable Cryocooler | RS079G |
| Cryocooler Type | Rotary Stirling Cryocooler |
| Steady Power Consumption(23℃) | ≤13W |
| Max. Power Consumption(71℃) | ≤30W |
| Power Supply | 24V DC |
| Cooling Time(23℃) | ≤7min |
| Maximum Size (mm) | 154×59×78 |
| Weight(g) | ≤730 |
| Operating Temperature | -45℃～+71℃ |
