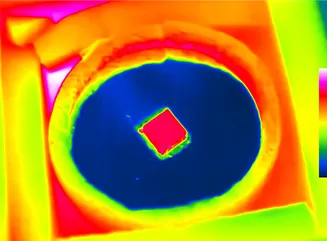

The C2510H high operating temperature (HOT) cooled infrared detector features an ultra-large 2560×2048 resolution with a 10μm pixel size. Its industry-leading 5-megapixel resolution delivers exceptional image quality and an ultra-wide field of view, while maintaining stable power consumption at just 8W. With a lightweight design of only 750g and a cooling time as short as 8 minutes, it shows enormous potential in cutting-edge thermal imaging applications such as ultra-wide FOV observation, ultra-long-range detection, tiny object recognition, space exploration, and advanced scientific research.
2560×2048 ultra-large array for exceptional clarity and sharp detail

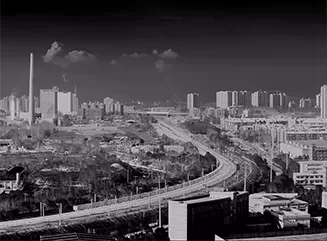

Meets the demands of ultra-wide field of view and ultra-long-range monitoring
Supports focal plane operating temperatures up to 150 K, with fast startup ≤8 min
Compact size≤ 86mm× 164mm×64 mm, low power consumption ≤8W
Excellent uniformity, high stability, and reliable mass production
| Model | C2510H HOT MWIR Cooled Infrared Detector |
| Sensitive Material | T2SL |
| Resolution | 2560×2048 |
| Pixel Size | 10μm |
| Spectral Response | 3.7±0.2μm~4.8±0.2μm |
| Typical NETD | 20mK(F2) |
| Max. Frame Rate | 100Hz |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Operating Temperature | -45℃~+71℃ |
| Cryocooler | RS079G |
| Cooling Time(23℃) | ≤8min |
| Max. Power Consumption(71℃) | ≤35W |
| Steady Power Consumption(23℃) | ≤8W |
| Size(mm) | 86×164×64 |
| Weight(g) | ≤750 |
