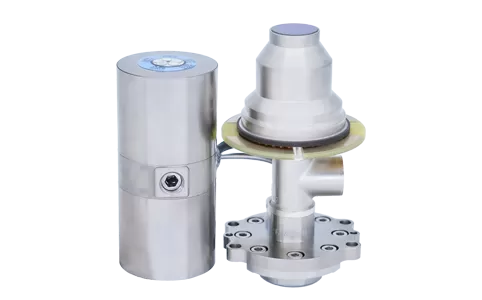

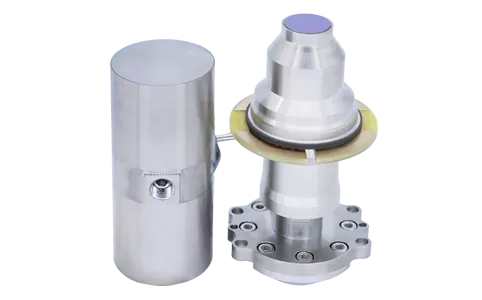

Based on Type-II Superlattice technology and linear cryocooler design, the C615H HOT cooled infrared detector features a 640×512 resolution with a 15μm pixel size. While ensuring excellent performance, its focal plane operating temperature is increased to 150 K, delivering outstanding SWaP (small size, light weight, low power consumption) performance. It fully meets market demands for high reliability and low maintenance cost thermal imaging solutions.
Dewar size: φ33 × 37.5 × 70 mm; Cryocooler: φ26 × 55.8 mm, allowing flexible integration
Weight reduced to 235g; stable power consumption lowered to 3W
Cooling time as short as 2.5 minutes
MTTF ≥ 25,000 h
| Model | C615H HOT MWIR Cooled Infrared Detector | |
| Sensitive Material | T2SL | |
| Resolution | 640×512 | |
| Pixel Size | 15μm | |
| Spectral Response | 3.7±0.2μm~4.8±0.2μm | |
| Typical NETD | 20mK(F2/F4) | |
| Max. Frame Rate | 100Hz | |
| Effective Pixel Rate | ≥99.76% | |
| Response Non-uniformity | ≤8% | |
| Operating Temperature | -45℃~+71℃ | |

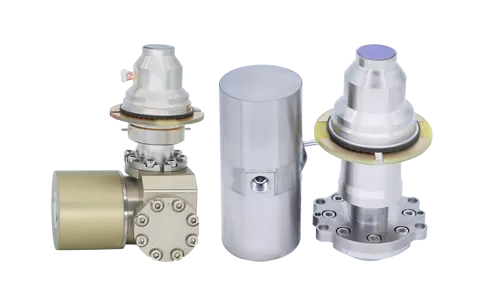

| Cryocooler | LS711H | RS028 |
| Cooling Time(23℃) | ≤3min | ≤2.5min |
| Max. Power Consumption(71℃) | ≤12W | ≤12W |
| Steady Power Consumption(23℃) | ≤3W | ≤3.5W |
| Size(mm) | Cryocooler: φ26×55.8 | 86x43x57 |
| Dewar: 33×37.5×70 | ||
| Weight(g) | ≤235 | ≤250 |
