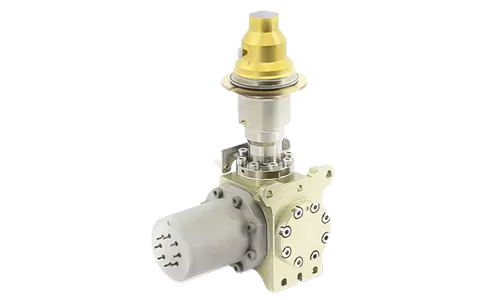

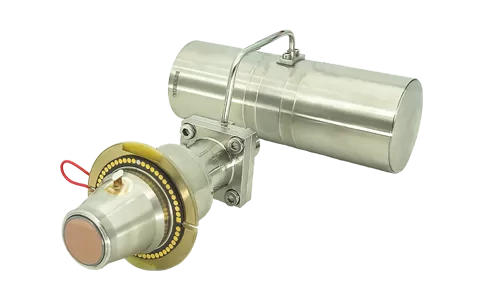

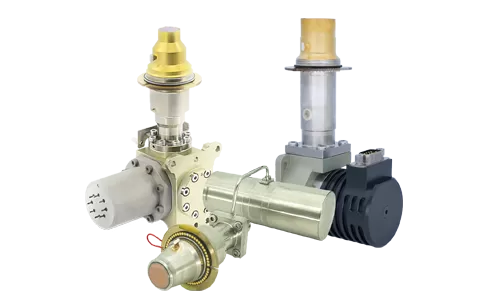

The C615M MCT MWIR cooled detector, with 640×512 resolution and a 15μm pixel size, operates in the 3.7–4.8μm wavelength area. It offers high sensitivity and clear image quality, tailored to meet the demand for high-performance thermal imaging. A variety of high-efficiency cryocoolers are available for flexible configuration, addressing diverse user requirements for lightweight design, low power consumption, and high reliability in core infrared components.
Excellent image uniformity with >99.5% effective pixel rate
Widely-adopted FPA with clear and smooth imaging experience
Standardized interfaces with plug-and-play interchangeability
Mass production with strong consistency and stable delivery
Customizable options for spectral response range, F-number, and mounting interface
Multiple cryocooler types available to suit various application needs
| Model | C615M MWIR Cooled Infrared Detector | ||
| Sensitive Material | MCT | ||
| Resolution | 640×512 | ||
| Pixel Size | 15μm | ||
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm | ||
| Working Mode | Snapshot ITR/IWR Integration Modes Windows Mode Anti-blooming | ||
| Charge Capacity | 6.36Me-(ITR), 4.99Me-(IWR) | ||
| Dynamic Range | ≥75dB | ||
| Output Channel | 4; Up to 10MHz per Output | ||
| Max. Frame Rate | 120Hz | ||
| Typical NETD | F2:16mK F4:18mK | ||
| Effective Pixel Rate | ≥99.76% | ||
| Response Non-uniformity | ≤8% | ||
| Configurable Cryocooler | RS058 | RS046 | LS734 |
| Cryocooler Type | Rotary Stirling Cryocooler | Rotary Stirling Cryocooler | Linear Stirling Cryocooler |
| Steady Power Consumption(23℃) | ≤6W | ≤5W | ≤10W |
| Max. Power Consumption(71℃) | ≤12W | ≤11W | ≤45W |
| Power Supply | 24V DC | 32V DC | 24V DC |
| Cooling Time(23℃) | ≤6min | ≤5min30s | ≤4min |
| Maximum Size (mm) | 145×58.5×71 | 120×46.5×81.5 | Compressor:Φ46×122 Dewar:Φ40×114 |
| Weight(g) | ≤600 | ≤350 | ≤1200 |
| Operating Temperature | -45℃~+71℃ | ||
