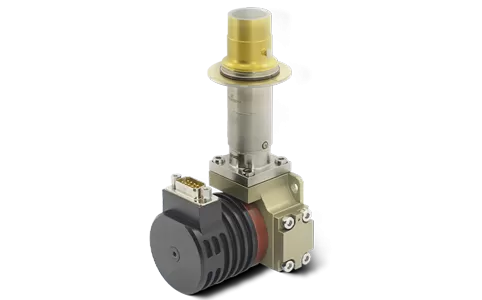

The C615S LWIR cooled infrared detector is developed using an industry-leading Type-II Superlattice technology, featuring a 640×512 resolution with a 15μm pixel size. It is specifically designed for high-performance long-wave infrared (7.7–9.4μm) detection, offering high quantum efficiency, high frame rate, high sensitivity, low noise, and excellent non-uniformity. With strong resistance to sand, dust, and glare interference, it is well-suited for challenging scenarios such as vehicle detection in sandstorms, vessel detection with water-surface reflections, and aircraft target detection above clouds.
Strong penetration capability in sand and dust, adaptable to complex environments
Unaffected by glare in strong sunlight or on water surfaces
Enhanced capability to detect low-temperature objects
Higher quantum efficiency with superior sensitivity
Low noise and excellent non-uniformity
Customizable F-number
Consistent quality in mass production
| Model | C615S LWIR Cooled Infrared Detector |
| Sensitive Material | T2SL |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | 7.7μm±0.2μm～9.4μm±0.3μm |
| Working Mode | Snapshot ITR/Interlace & Binning Integration Modes Windows Mode Anti-blooming |
| Charge Capacity | ITR: 12.22Me-/6.67Me- Interlace & binning:24.44Me-/13.33Me- |
| Dynamic Range | ITR: ≥76dB Interlace & binning:≥77dB |
| Output Channel | 4; Up to 22.5MHz per Output |
| Max. Frame Rate | 220Hz |
| Typical NETD | 25mK(F2 ITR) 22mK(F2 Interlace & binning) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Configurable Cryocooler | RS058F |
| Steady Power Consumption(23℃) | ≤8W |
| Max. Power Consumption(71℃) | ≤20W |
| Power Supply | 24V DC |
| Cooling Time(23℃) | ≤5min30s |
| Maximum Size(mm) | 148×58.5×71 |
| Weight(g) | ≤570 |
| Operating Temperature | -45℃～+71℃ |
