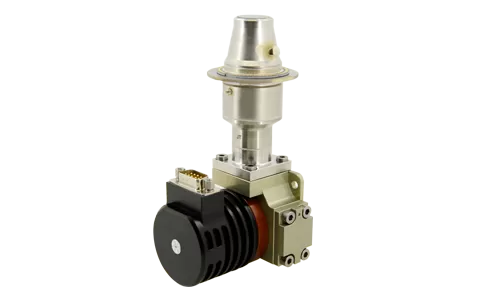

C625M MCT MWIR Cooled Infrared Detector features a 640×512 resolution and a 25μm pixel size, operating in the 3.7–4.8μm spectral band. Compared with other MWIR cooled detectors of the same resolution, its larger pixel size provides a greater infrared radiation sensing area, resulting in improved thermal information fidelity and a significantly enhanced signal-to-noise ratio. This makes it ideal for users requiring high SNR, high contrast, and wide dynamic range in mid-to-high-end thermal imaging applications.
Good image uniformity, effective pixel rate ≥ 99.5%
Excellent signal-to-noise ratio and high sensitivity
Customizable F-number
Mass production with good consistency
| Model | C625M MWIR Cooled Infrared Detector |
| Sensitive Material | MCT |
| Resolution | 640×512 |
| Pixel Size | 25μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| Working Mode | Snapshot ITR/IWR Integration Modes Windows Mode Anti-blooming |
| Charge Capacity | 15.7Me-/21.8Me-(ITR) 12.3Me-/18.7Me-(IWR) |
| Dynamic Range | ITR Mode≥80dB IWR Mode≥79dB |
| Output Channel | 4; Up to 20MHz per Output |
| Typical NETD | 10mK(F2) |
| Max. Frame Rate | 180Hz |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Configurable Cryocooler | RS079 |
| Steady Power Consumption(23℃) | ≤15W |
| Max. Power Consumption(71℃) | ≤20W |
| Power Supply | 24V DC |
| Cooling Time(23℃) | ≤7min |
| Weight(g) | ≤650 |
| Maximum Size (mm) | 148×59×78 |
| Operating Temperature | -45℃～+71℃ |
