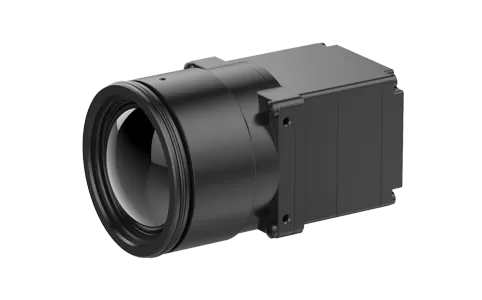

The COIN1212 infrared camera core features a megapixel 1280×1024/12μm wafer-level infrared detector, integrated with advanced signal processing circuits and imaging algorithms. It supports mainstream serial communication protocols and offers a variety of video output interfaces along with a full range of optical lens options. Capable of quickly detecting hotspots and delivering clear thermal images, it significantly streamlines secondary development. This makes it an all-in-one thermal imaging integration solution for applications in key infrastructure monitoring, high-end manufacturing, intelligent transportation, scientific research, and other high-end thermal imaging applications.
1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging
Captures fine target details clearly during close-range observation
Built with an industry-leading large-format wafer-level infrared detector
Integrated with advanced image processing algorithms to enhance image clarity and visual quality
Supports multiple image output interfaces including DVP and BT.1120
Outputs RAW/YUV image data with serial port control
| Model | COIN1212 |
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤40mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 25/30Hz |
| Start-up Time | 6s |
| Analog Video | / |
| Digital Video | DVP16/BT.1120 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0 |
| Communication Interface | TTL-232 |
| Digital Video Interface | DVP16/BT.1120 |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.95W |
| Mechanical | |
| Bare Core Size(mm) | 25.4×25.4×19.3 |
| Bare Core Weight(g) | 14±2 |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | Sine Vibration, Frequency: 10HZ～150HZ～10HZ, Peak Value: 0.15mm, Axial Direction: X, Endurance Time: 8min/axis, Cycles: 2 times |
| Impact | Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/24mm/35mm/50mm/100mm |
| Protection Level | IP67(Front Lens) |
