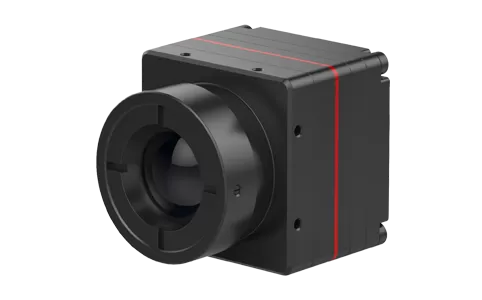

The COIN417RG³ infrared camera core for temperature measurement features a 384×288/17μm wafer-level infrared detector and integrates a real-time temperature measurement component. It supports a wide temperature range with an accuracy of ±3°C or ±3%, enabling precise detection of abnormal temperature variations. Its ultra-low power design and compatibility with standard industry interfaces significantly reduce development and integration costs. The camera core is already deeply integrated into industrial temperature monitoring, process control, and smart manufacturing applications, accelerating the deployment of infrared thermographic systems.
Developed based on cost-effective wafer-level packaged detectors
Integrated with advanced image processing algorithms to enhance image quality
High temperature measurement accuracy up to ±2°C or ±2%, supporting temperature ranges of -20°C to 150°C and 100℃ to 550°C, customizable for extended ranges
Multiple optical lens options available to meet various application needs
Supports multiple output modes including USB2.0/DVP/LVDS/BT.656
Outputs RAW/YUV image data, with serial port control
| Model | COIN417RG3 |
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 384×288 |
| Pixel Size | 17μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK |
| Image Processing | |
| Digital Frame Rate | 25/30/50Hz |
| Start-up Time | 6s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50Pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0/USB2.0/VPC/USB2.0&VPC |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/DVP16/USB2.0/BT.656/LVDS |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.55W |
| Temperature Measurement | |
| Operating Temperature | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~+150℃，100℃~+550℃ |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Partial Temperature Measurement | Support output maximum, minimum and average value of temperature measurement areas |
| SDK | Android/Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Mechanical | |
| Bare Core Size(mm) | 25.4×25.4×16.5 |
| Bare Core Weight(g) | 16.6±1 |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration, 5.35grms, 3-axis |
| Impact | Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm |
| Protection Level | IP67(Front Lens) |
