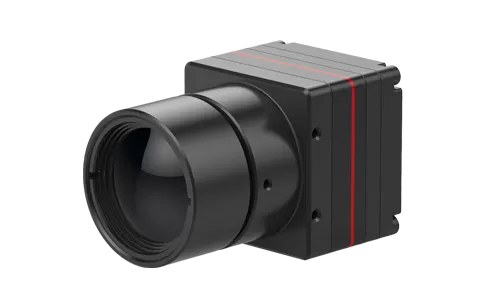

The COIN612G2 infrared camera core features a 640×512/12μm wafer-level infrared detector, integrated with advanced signal processing circuits and imaging algorithms. It supports mainstream serial communication protocols and offers a variety of video output interfaces along with a full range of optical lens options. Capable of quickly detecting hotspots and delivering clear thermal images, it significantly streamlines secondary development. This makes it an all-in-one thermal imaging integration solution for applications in industrial vision, night surveillance, outdoor observation, and AIoT.
Developed with a high-performance, cost-efficient wafer-level infrared detector
Combines a mainstream FPA with advanced image processing algorithms to enhance image quality
Dimensions: 25.4×25.4×15.7mm
Weight: 15±1g, Power consumption≤0.7W
Multiple lens options available to meet various application requirements
Supports USB 2.0/DVP/LVDS/BT.656 image output interfaces
Outputs RAW/YUV image data with serial port control
| Model | COIN612G2 |
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤30mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 25/30/50Hz |
| Start-up Time | 6s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0/USB2.0/VPC/USB2.0&VPC |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/DVP16/USB2.0/BT.656/LVDS |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.7W |
| Mechanical | |
| Bare Core Size(mm) | 25.4×25.4×15.7 |
| Bare Core Weight(g) | 15±3g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm/50mm/70mm |
| Protection Level | IP67(Front Lens) |
