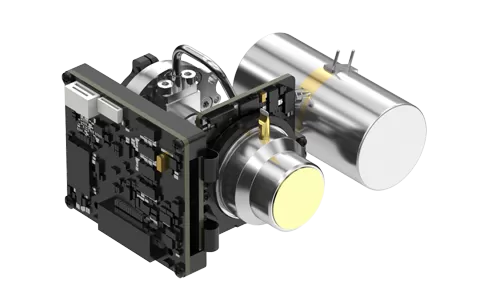

The EYAS G1010HMG cooled AD module consists of a 640×512/10μm HOT cooled infrared detector and an AD circuit board, equipped with an RS046 rotary Stirling cryocooler. It converts the analog output signal of the cooled infrared detector into a digital video stream, while also providing drive power and control timing. This helps OEM customers quickly test and verify detectors, simplifies the integration process between cooled infrared detectors and complete systems, and significantly accelerates development progress. HOT (Operating temperature up to 150K) modules boast optimized Size, Weight, and Power (SWaP) and reliability, which is ideal for lightweight applications that require high stability. Compared to the EYAS G615HMG, the EYAS G1010HMG offers a wider field of view and higher resolution.
Developed based on a 1024×768/10μm large-format, small-pixel HOT MWIR cooled infrared detector, delivering more delicate imaging details
Integrated AD circuit for analog-to-digital conversion, enabling quick platform integration
Integrated design with dimensions consistent with the detector
Focal plane operating temperature raised to 150K
Minimum size≤72×87×51mm,weight as low as 250g, and power consumption down to 6W
Adjustable frame rate from 1–120 Hz, capable of capturing fast-moving targets
Camera Link interface outputs 16-bit raw data, with serial port control
| Model | EYAS G1010HMG HOT MWIR Cooled AD Module |
| Indicators | |
| Resolution | 1024×768 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2) 25mK(F4) |
| Working Mode | |
| Frame Rate | 1~100Hz,adjustable(50Hz by default) |
| Working Mode | Snapshot ITR/IWR Integration Modes Anti-blooming Windows Mode |
| Electrical | |
| Standard External Interface | 60pin: 37201-SM060-032W1R01 5pin: A1257WR-S-5P-LCP |
| Digital Video | 16 bit CameraLink(CameraLink DualBase mode) |
| External Sync | CC1: External frame synchronous |
| Communication | CameraLink UART(Default)/ RS232(customizable) Baud rate: 9600bps(Default) |
| Power Supply | AD Board: 5V Cryocooler: 12V |
| Steady Power (23℃) | ≤6W |
| Cooling Time(23℃) | ≤3min |
| Size(mm) | 72×87×51 |
| Weight(g) | ≤250 |
| Operating Temperature | -40℃~+71℃ |
