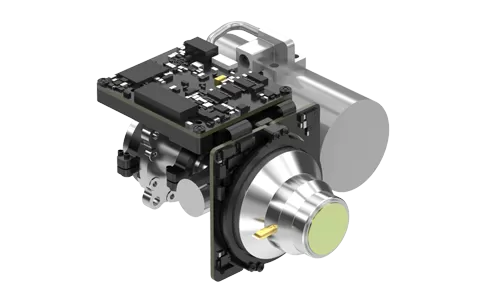

The EYAS G1210HMF integrates a 1280×1024/10 μm megapixel HOT MWIR cooled infrared detector with an AD circuit board, equipped with a high-performance linear Stirling cryocooler. It supports real-time conversion of analog signals into digital video streams, and integrates drive power and control timing functions, enabling quick system platform integration. This helps OEM customers efficiently perform detector testing and validation, significantly simplifying system integration and accelerating development progress. Thanks to HOT technology, the EYAS G1210HMF achieves optimized SWaP (size, weight, and power) while maintaining high performance, making it ideal for integrated applications with demanding requirements for image quality and reliability.
Developed based on a 1280×1024/10μm megapixel HOT MWIR cooled infrared detector, delivering more delicate imaging details
Integrated AD circuit for analog-to-digital conversion, enabling quick platform integration
Integrated design with dimensions consistent with the detector
Focal plane operating temperature raised to 150K
Minimum size≤102×87×57mm,weight as low as 390g, and power consumption down to 6W
Adjustable frame rate from 1–100 Hz, capable of capturing fast-moving targets
CameraLink interface outputs 16-bit raw data, with serial port control
| Model | EYAS G1210HMF HOT MWIR Cooled AD Module |
| Indicators | |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2) 25mK(F4) |
| Working Mode | |
| Frame Rate | 1~100Hz, adjustable(50Hz by default) |
| Working Mode | Snapshot ITR/IWR Integration Modes Anti-blooming Windows Mode |
| Electrical | |
| Standard External Interface | 60pin: 37201-SM060-032W1R01 5pin: A1257WR-S-5P-LCP |
| Digital Video | 16 bit CameraLink(CameraLink DualBase mode) |
| External Sync | CC1: External frame synchronous |
| Communication | CameraLink UART(Default)/ RS232(customizable) Baud rate: 9600bps(Default) |
| Power Supply | AD Board: 5V Cryocooler: 12V |
| Steady Power (23℃) | ≤6W |
| Cooling Time(23℃) | ≤3min |
| Size(mm) | 102×87×57 |
| Weight(g) | ≤390 |
| Operating Temperature | -40℃~+71℃ |
