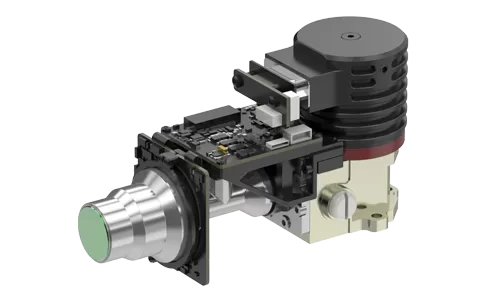

The EYAS G1210LC cooled AD module consists of a 1280×1024/10μm LWIR cooled infrared detector and an AD (analog-to-digital) circuit board. Equipped with an RS079G rotary Stirling cryocooler, the module converts the analog output signal of the cooled infrared detector into a digital video stream, while providing the required driving power and timing control. It helps OEM customers quickly conduct testing of infrared detectors, simplify system integration, and significantly accelerate development. Compared with MWIR AD modules, LWIR modules offer stronger penetration and anti-interference capabilities, making it suitable for high-reliability applications under complex conditions.
Based on 1280x1024/10μm LWIR cooled infrared detectors, integrated with AD circuit for analog-to-digital conversion
Integrated design with dimensions consistent with the detector
Strong penetration through dust and sand, suitable for complex environments
Not affected by reflections from the sun and sea surfaces
Capable of detecting low-temperature objects
Cameralink interface outputs 16-bit raw data, with serial port control
Adjustable high frame rate from 1 to 100Hz, capable of capturing high-speed moving targets
| Model | EYAS G1210LC LWIR Cooled AD Module |
| Indicators | |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 7.7μm±0.2μm～9.4μm±0.3μm |
| IR Detector NETD(23℃) | 35mK(F2) |
| Working Mode | |
| Frame Rate | 1~ 100Hz, adjustable |
| Working Mode | Snapshot ITR Mode Anti-blooming Windows Mode |
| Electrical | |
| Standard External Interface | 60pin: 37201-SM060-032W1R01 5pin: A1257WR-S-5P-LCP |
| Digital Video | 16 bit CameraLink(CameraLink DualBase mode) |
| External Sync | CC1: External frame synchronous |
| Communication | CameraLink UART(Default)/ RS232(Customizable) Baud rate: 9600bps(Default) |
| Power Supply | AD Board: 5V Cryocooler: 24V |
| Steady Power (23℃) | ≤13W |
| Cooling Time(23℃) | ≤6min |
| Size(mm) | 148×59×82 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
