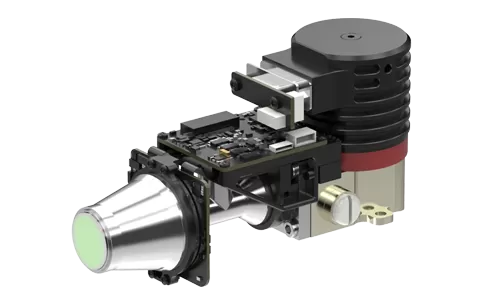

The EYAS G1212MA cooled AD module consist of a 1280× 1024/12μm megapixel high-definition MWIR cooled infrared detectors with an analog-to-digital (AD) board. Equipped with an RS058 rotary Stirling cryocooler, it delivers stable digital video output by converting analog signals from the detector into high-quality digital streams. Designed to support OEM customers, it enables faster detector testing, streamlined system integration, and accelerated development cycles.
Based on high-performance MWIR cooled infrared detectors, integrated with AD circuit for analog-to-digital conversion
Integrated design with dimensions consistent with the detector
Equipped with a 1280×1024/12μm MWIR high-resolution cooled infrared detector
Offers 4× the clarity of the 640×512 MWIR AD module for finer, more detailed imagery
Adjustable high frame rate from 1 to 100 Hz, capable of capturing fast-moving targets
Cameralink interface outputs 16-bit raw data, with serial port control
| Model | EYAS G1212MA MWIR Cooled AD Module |
| Indicators | |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 18mK(F2/F4) |
| Working Mode | |
| Frame Rate | 1~ 100Hz, adjustable |
| Working Mode | Snapshot ITR/IWR Integration Modes Anti-blooming Windows Mode |
| Electrical | |
| Standard External Interface | 60pin: 37201-SM060-032W1R01 5pin: A1257WR-S-5P-LCP |
| Digital Video | 16 bit CameraLink(CameraLink DualBase mode) |
| External Sync | CC1: External frame synchronous |
| Communication | CameraLink UART(Default)/ RS232(customizable) Baud rate: 9600bps(Default) |
| Power Supply | AD Board: 5V Cryocooler: 24V |
| Steady Power (23℃) | ≤12W |
| Cooling Time(23℃) | ≤7min |
| Size(mm) | 148×59×80 |
| Weight(g) | ≤630 |
| Operating Temperature | -40℃~+71℃ |
