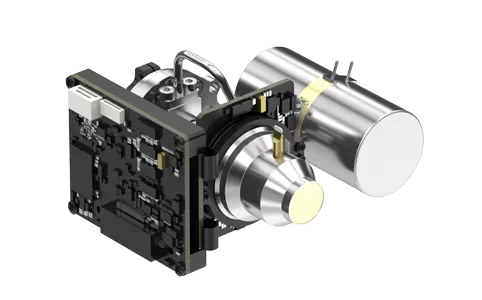

The EYAS G615HMG cooled AD module consists of a 640×512/15μm HOT (High Operating Temperature) MWIR cooled infrared detector and an AD (analog-to-digital) circuit board. Equipped with a high-performance linear Stirling cryocooler, the module converts the analog output signal of the cooled infrared detector into a digital video stream, while providing the necessary driving power and timing control. It helps OEM customers quickly conduct acceptance testing of infrared detectors, simplify system integration, and significantly accelerate development. Compared to conventional MWIR cooled AD modules, HOT (Operating temperature up to 150K) Modules boast optimized Size, Weight, and Power (SWaP) and reliability, empowering lightweight applications that require high stability.
Developed based on a mainstream 640×512/15μm HOT MWIR cooled infrared detector, widely applicable across platforms
Integrated AD circuit for analog-to-digital conversion, enabling quick system integration
All-in-one design, identical in size to the detector
Focal plane operating temperature increased to 150 K
Dimensions ≤ 72×87×51 mm, weight ≤ 250 g, power consumption ≤ 4.5 W
Adjustable frame rate from 1–120 Hz, capable of capturing fast-moving targets
Camera Link interface outputs 16-bit raw data, with serial port control
| Model | EYAS G615HMG HOT Cooled MWIR AD Module |
| Indicators | |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F4) |
| Working Mode | |
| Frame Rate | 1~ 120Hz,adjustable |
| Working Mode | Snapshot ITR/IWR Integration Modes Anti-blooming Windows Mode |
| Electrical | |
| Standard External Interface | 60pin: 37201-SM060-032W1R01 5pin: A1257WR-S-5P-LCP |
| Digital Video | 16 bit CameraLink(CameraLink Base mode) |
| External Sync | CC1: External frame synchronous |
| Communication | CameraLink UART(Default)/ RS232(customizable) Baud rate: 9600bps(Default) |
| Power Supply | AD Board: 5V Cryocooler: 12V |
| Steady Power (23℃) | ≤4.5W |
| Cooling Time(23℃) | ≤3min |
| Size(mm) | 72×87×51 |
| Weight(g) | ≤250 |
| Operating Temperature | -40℃~+71℃ |
