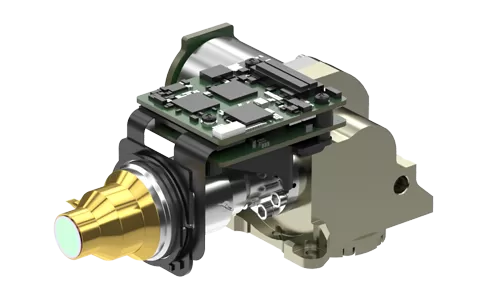

The EYAS G615MB cooled AD module consists of a 640×512/15μm MWIR cooled infrared detector and an AD circuit board, equipped with an RS046 rotary Stirling cryocooler. It converts the analog output signal of the cooled infrared detector into a digital video stream, while also providing drive power and control timing. This helps OEM customers quickly test and verify detectors, simplifies the integration process between cooled infrared detectors and complete systems, and significantly accelerates development progress.
Based on 640x512 MWIR cooled infrared detectors, integrated with AD circuit for analog-to-digital conversion
Integrated design with dimensions consistent with the detector
Mid-wave cooling with excellent consistency and stable supply
Mainstream resolution, offering broad adaptability
Adjustable high frame rate from 1 to 100 Hz, capable of capturing fast-moving targets
Cameralink interface outputs 16-bit raw data, with serial port control
| Model | EYAS G615MB MWIR Cooled AD Module |
| Indicators | |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F4) 25mK(F5.5) |
| Working Mode | |
| Frame Rate | 1~ 100Hz,adjustable |
| Working Mode | Snapshot ITR/IWR Integration Modes Anti-blooming Windows Mode |
| Electrical | |
| Standard External Interface | 60pin: 37201-SM060-032W1R01 5pin: A1257WR-S-5P-LCP |
| Digital Video | 16 bit CameraLink(CameraLink Base mode) |
| External Sync | CC1: External frame synchronous |
| Communication | CameraLink UART(Default)/ RS232(customizable) Baud rate: 9600bps(Default) |
| Power Supply | AD Board: 5V Cryocooler: 12V |
| Steady Power (23℃) | ≤8.5W |
| Cooling Time(23℃) | ≤5min30s |
| Size(mm) | 122×86×60 |
| Weight(g) | ≤400 |
| Operating Temperature | -40℃~+71℃ |
