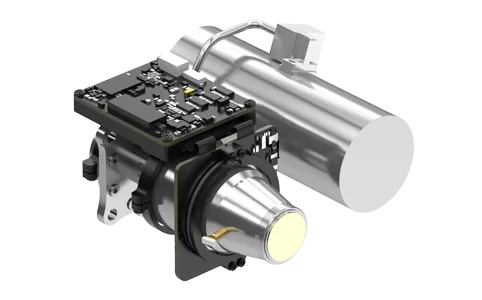

The EYAS G615ME series cooled AD modules consist of 640x512/15μm MWIR cooled infrared detectors integrated with an analog-to-digital (AD) board. The modules convert the analog output signals from the cooled detectors into digital video streams, while also providing the necessary drive power and control timing signals. Powered by a high-performance linear Stirling cryocooler, the module operates longer and more stable, enabling OEM customers quickly evaluate and validate infrared detectors, streamlining the system integration process and significantly accelerating development pipelines.
Based on 640×512 MWIR cooled infrared detectors, integrated with AD circuit for analog-to-digital conversion
Integrated design with dimensions consistent with the detector
Mainstream resolution for wider adoption
Equipped with the LS723 high-performance linear Stirling cryocooler for extended operational life
Supports continuous 24/7 operation
Adjustable frame rate from 1 to 100 Hz for capturing fast-moving targets
Camera Link interface outputs 16-bit raw data, with serial port control
| Model | EYAS G615ME MWIR Cooled AD Module |
| Indicators | |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 16mK(F2) 18mK(F4) |
| Working Mode | |
| Frame Rate | 1~ 100Hz, adjustable |
| Working Mode | Snapshot ITR/IWR Integration Modes Anti-blooming Windows Mode |
| Electrical | |
| Standard External Interface | 60pin: 37201-SM060-032W1R01 5pin: A1257WR-S-5P-LCP |
| Digital Video | 16 bit CameraLink(CameraLink Base mode) |
| External Sync | CC1: External frame synchronous |
| Communication | CameraLink UART(Default)/ RS232(customizable) Baud rate: 9600bps(Default) |
| Power Supply | AD Board: 5V Cryocooler: 24V |
| Steady Power (23℃) | ≤14W |
| Cooling Time(23℃) | ≤6min30s |
| Size(mm) | 110×105×60 |
| Weight(g) | ≤590 |
| Operating Temperature | -40℃~+71℃ |
