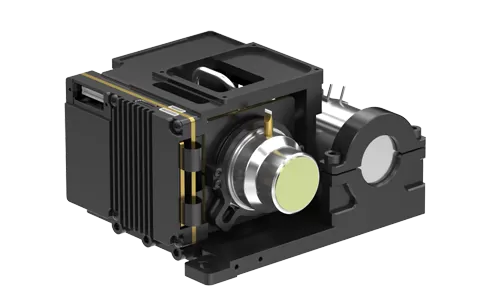

The GAVIN GC1010HMG infrared camera core integrates a 1024×768/10μm HOT MWIR cooled infrared detector, offering a larger array and smaller pixels compared to the GAVIN GC615HMG, resulting in clearer imaging with finer details. Combined with next-generation image processing algorithms, it delivers stable, high-quality images, while HOT technology enables next-level SWaP optimizations with smaller and lighter design, and low power consumption. The easy-to-integrate infrared camera core supports various digital video interfaces, making it ideal for handheld devices, mobile payloads, and long-duration monitoring in compact integration scenarios where size, energy efficiency, and long-range detection are critical.
Developed based on a 1024×768/10μm large-format HOT MWIR cooled infrared detector, delivering clear images and wide field of view
Equipped with next-generation image processing algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for superior image quality
Smaller 10μm pixel size provides higher spatial resolution and better signal-to-noise ratio
Supports 150K high-temperature operation, with cooling time ≤ 4min
Compact size: 87×94×54.5mm, lightweight: 460g
Supports CameraLink/USB3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces
Flexible RAW/YUV image output
| Model | GAVIN GC1010HMG HOT MWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 1024×768 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2) 25mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard:DVP/LVDS/USB2.0 Option:Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤8W |
| Cooling Time(23℃) | ≤4min |
| Size(mm) | 87×94×54.5 |
| Weight(g) | ≤460 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 25mm/F2 |
