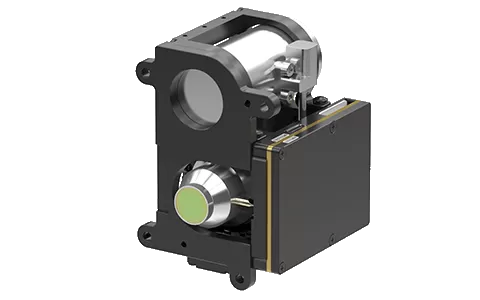

The GAVIN GC1207HMG infrared camera core features a 1280×1024/7.5μm High Operating Temperature (HOT) mid-wave infrared (MWIR) cooled detector. Compared to traditional 640×512/15μm MWIR solutions, it offers one-third smaller pixel size and four times higher resolutions, which dramatically enhances spatial resolution and image clarity. Combined with advanced image processing algorithms, it delivers high-definition, detailed infrared imagery at megapixel resolution. With the same field of view, the 7.5μm small pixel design supports shorter focal lengths and more compact optical system designs. Combined with HOT technology, the product demonstrates significant SWaP (Size, Weight, and Power) advantages, making it particularly suitable for applications such as high-precision long-range detection and platforms with limited space.
1280×1024 resolution with next-gen image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement, delivering megapixel thermal images directly
With the same FOV, the 7.5μm small pixel size supports shorter focal lengths and more compact optical system designs, enhancing integration flexibility
Supports high operating temperature up to 150 K, with cooling time ≤4 min
Compact size of only 71×55×84mm and lightweight at 360g
Multiple image interfaces: CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber
Flexible output of RAW/YUV image data
| Model | GAVIN GC1207HMG HOT MWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 1280×1024 |
| Pixel Size | 7.5μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| F/# | 4 |
| IR Detector NETD(23℃) | 35mk(F4) |
| Image Processing | |
| Frame Rate | 50Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤8W |
| Cooling Time(23℃) | ≤4min |
| Size(mm) | 71×55×84 |
| Weight(g) | ≤360 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 25mm/F2 Continuous zoom: 15~300mm/F4 23~450mm/F4 |
