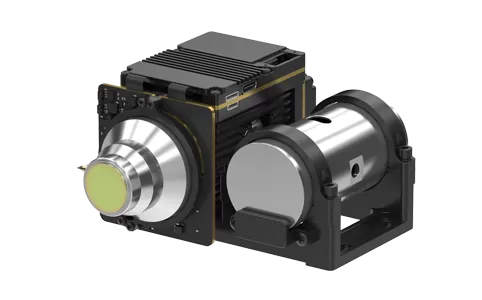

The GAVIN GC1210HMF infrared camera core features a 1280×1024/10μm High Operating Temperature (HOT) mid-wave infrared (MWIR) cooled detector. Compared to traditional 640×512/15μm MWIR solutions, it offers one-third smaller pixel pitch and four times higher resolution array, which dramatically enhances spatial resolution and image clarity. Combined with advanced image processing algorithms, it delivers high-definition, finely detailed infrared imagery at megapixel resolution. Powered by HOT technology, the GAVIN GC1210HMF infrared camera core significantly enhances SWaP performance by offering a compact size, lightweight design, and low power consumption, making it an ideal solution for long-range infrared systems with strict space and integration requirements.
Developed based on a 1280×1024/10μm HOT MWIR cooled infrared detector, delivering high-definition and delicate image quality
Integrated with advanced image processing algorithms such as DRC, 2D/3D noise reduction, and EE edge enhancement for clearer imaging
Supports high-temperature operation at 150K, with a cooling time ≤4min
Compact dimensions down to 101×101×54mm, lightweight at just 570g
Supports Cameralink/USB3.0/GigE/HDMI/SDI/MIPI/fiber optic video outputs
Flexible RAW/YUV image data output
| Model | GAVIN GC1210HMF HOT MWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2) 25mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤8W |
| Cooling Time(23℃) | ≤4min |
| Size(mm) | 101×101×54 |
| Weight(g) | ≤570 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 15mm/F2 Continuous zoom: 15~300mm/F4 30~500mm/F4 |
