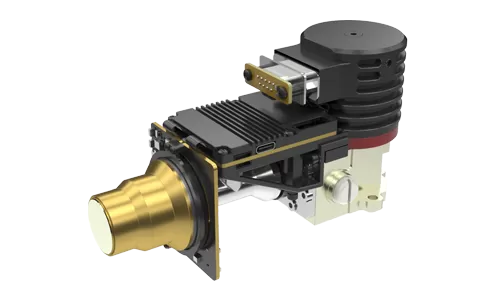

The GAVIN GC1210LC infrared camera core adopts a Type-II Superlattice 1280×1024/10μm LWIR cooled infrared detector. Compared with traditional 640×512/15μm long-wave products, it reduces pixel size by one-third and increases resolution by four times, significantly enhancing spatial resolution and image clarity. Combined with multiple image processing algorithms, it delivers high-definition, delicate megapixel infrared images, making it particularly suitable for long-range target detection tasks in poor visibility and harsh weather conditions.
Developed with a 1280×1024/10μm megapixel long-wave detector for exceptional detail
Enhanced with next-generation image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for clearer imaging
Strong resistance to dust and glare, adaptable to complex environments
Capable of detecting low-temperature objects
Type-II Superlattice technology with excellent quantum efficiency and uniformity
Multiple image interfaces: CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber
Flexible RAW/YUV image data output
| Model | GAVIN GC1210LC LWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 7.7μm±0.2μm～9.4μm±0.3μm |
| IR Detector NETD(23℃) | 35mK(F2) |
| Image Processing | |
| Frame Rate | 50Hz |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤15W |
| Cooling Time(23℃) | ≤8min |
| Size(mm) | 148×59×82 |
| Weight(g) | ≤730 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 45mm/F2 Continuous zoom: 30~300/F2 |
