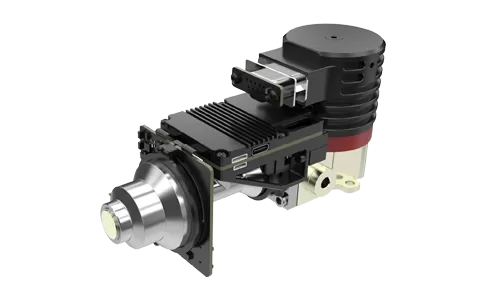

Equipped with a self-developed 1280×1024/10μm MWIR cooled infrared detector, the GAVIN GC1210MA delivers four times the pixel count of conventional 640×512 detectors over the same active imaging area. This enables a significantly wider field of view and reveals finer image details. Enhanced with a suite of advanced image processing algorithms, the camera core outputs clear thermal images directly. Even in complete darkness or harsh weather conditions, it can reliably detect distant potential threats as well as fine details of nearby targets.
Powered by a 1280×1024/10μm mid-wave cooled infrared detector for sharp, detailed thermal imaging
Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity
MWIR cooled thermal imaging technology ensures excellent adaptability and consistency across applications
Outstanding thermal sensitivity with NETD as low as 20mK
Supports CameraLink interface with RAW/YUV image data output
Multiple continuous zoom optical configurations available for different needs
| Model | GAVIN GC1210MA MWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 1280×1024 |
| Pixel Size | 10μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F2/F4) |
| Image Processing | |
| Frame Rate | 50Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤14W |
| Cooling Time(23℃) | ≤9min |
| Size(mm) | 145×61×82 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 15mm/F2 Continuous zoom: 15~300mm/F4 30~500mm/F4 |
