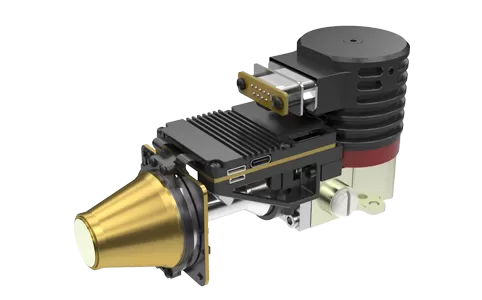

The GAVIN GC1212MA HD MWIR cooled infrared camera core features a self-developed 1280×1024/12μm MWIR cooled detector, providing four times the pixel count of a conventional 640×512 detector within the same active image area. This enables a wider field of view and reveals more image details. Equipped with multiple image processing algorithms, it delivers high-definition images directly, suitable for all-weather target detection under various visibility conditions and harsh environments.
Powered by a 1280×1024/12μm mid-wave cooled infrared detector for sharp, detailed thermal imaging
Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity
Mid-wave cooled thermal imaging technology ensures excellent adaptability and consistency across applications
Outstanding thermal sensitivity with NETD as low as 18mK
Supports CameraLink interface with RAW/YUV image data output
Multiple continuous zoom optical configurations available for different needs
| Model | GAVIN GC1212MA MWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 18mK(F2/F4) |
| Image Processing | |
| Frame Rate | 50Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤11W |
| Cooling Time(23℃) | ≤8min |
| Size(mm) | 149×58.5×80 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 19mm/F2 Continuous zoom: 60~360mm/F4 37.5~750mm/F4 100~1100mm/F4 |
