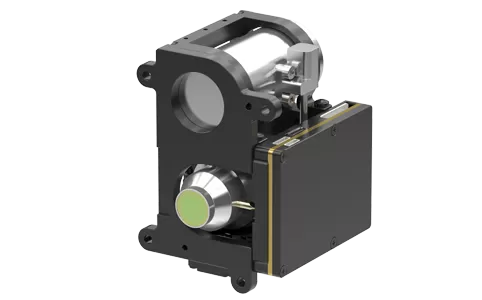

The GAVIN GC615HMG infrared camera core integrates a 640×512/15μm HOT MWIR cooled infrared detector with next-generation image processing algorithms. The HOT technology enables not only high-quality and stable imaging, but also compact size, lightweight design, and low power consumption, delivering optimized SWaP performance for versatile applications. With broad compatibility across multiple digital video interfaces and easy secondary development, it is suitable for handheld devices, mobile payloads, and long-duration monitoring, meeting stringent requirements for compact size, energy efficiency, and long-range detection in various infrared integration scenarios.
Developed based on a 640×512/15μm large-format HOT MWIR cooled infrared detector, offering excellent versatility
Equipped with next-generation image processing algorithms, including DRC, 2D/3D noise reduction, and edge enhancement (EE), delivering clearer images
Supports high-temperature operation up to 150K, with cooling time ≤ 3min30s
Compact size: 71×55×84 mm, weight: 350g, power consumption: 7W
Supports CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber optic interfaces
Flexible RAW/ YUV image output
| Model | GAVIN GC615HMG HOT MWIR Cooled Infrared Camera Core |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 20mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz (F4) / 30Hz (F5.5) |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard:DVP/LVDS/USB2.0 Option:Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 12V±1V |
| Steady Power Consumption(23℃) | ≤7W |
| Cooling Time(23℃) | ≤3min30s |
| Size(mm) | 71×55×84 |
| Weight(g) | ≤350 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 25mm/F2 Continuous zoom: 18~275mm/F5.5 90~1100mm/F5.5 15~300mm/F4 23~450mm/F4 |
