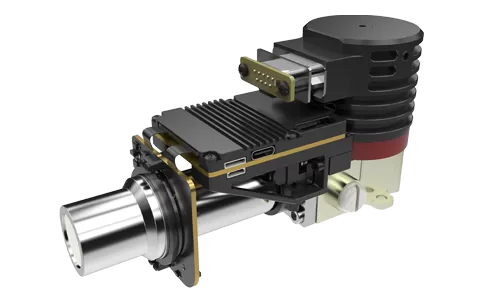

The GAVIN GC615LA infrared camera core integrates a Type-II Superlattice (T2SL) 640×512/15μm LWIR cooled infrared detector with multiple image processing algorithms. It supports various mainstream video interfaces, making development convenient and integration flexible. This camera core is an ideal solution for long-range, high-performance LWIR electro-optical system integration, particularly suited for precise target detection in challenging environments such as dusty conditions or strong sunlight with reflective interference.
Developed with a 640×512/15μm LWIR cooled detector for exceptional detail
Enhanced with next-generation image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for clearer imaging
Strong resistance to dust and glare, adaptable to complex environments
Capable of detecting low-temperature objects
Type-II Superlattice technology with excellent quantum efficiency and uniformity
Multiple image interfaces: CameraLink/USB3.0/GigE/HDMI/SDI/MIPI/Fiber
Flexible RAW/YUV image data output
| Model | GAVIN GC615LA LWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | 7.7μm±0.2μm～9.4μm±0.3μm |
| IR Detector NETD(23℃) | 25mK(F2) |
| Image Processing | |
| Frame Rate | 50Hz/100Hz/200Hz |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤11W |
| Cooling Time(23℃) | ≤8min |
| Size(mm) | 145×58.5×77 |
| Weight(g) | ≤650 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 25mm/F2 Continuous zoom: 30~300mm/F2 |
