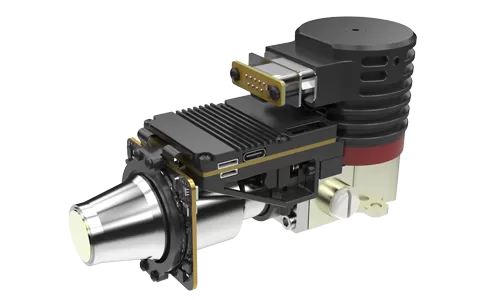

The GAVIN GC615MA MWIR cooled infrared camera core is equipped with a self-developed 640×512/15μm MWIR detector and an RS058 low-temperature Stirling cryocooler.
It features built-in advanced AI image algorithms, offering a full range of specifications with excellent consistency and stability. The product supports large-scale, reliable supply, fully meeting the needs of various industrial applications. Even in complete darkness or harsh weather conditions, the camera core delivers clear thermal images and accurate detection of both distant threats and close-range details. Ideal for security, surveillance, and monitoring scenarios, the GAVIN GC615MA infrared camera core provides reliable technological support across diverse environments.
Developed based on a 640×512/15μm MWIR cooled infrared detector, ensuring stable image quality
Integrated next-generation image algorithms including DRC, 2D/3D noise reduction, and EE (edge enhancement) for clearer imaging
Mid-wave cooled infrared ensures excellent versatility and consistency
High thermal sensitivity with NETD as low as 16mK
Cameralink video interface with RAW/YUV image data output
Multiple continuous zoom optical configurations available
| Model | GAVIN GC615MA MWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 16mK(F2) 18mK(F4) |
| Image Processing | |
| Frame Rate | 50Hz/100Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard:DVP/LVDS/USB2.0@50Hz Option:Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤10W |
| Cooling Time(23℃) | ≤8min |
| Size(mm) | 142×58.5×80 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 25mm/F2 Continuous zoom: 30~240mm/F4 15~300mm/F4 45~450mm/F4 35~690mm/F4 32~730mm/F4 |
