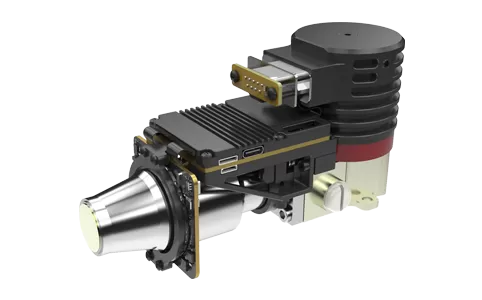

The GAVIN GC615WMA integrates a 640×512/15μm broadband MWIR detector and an RS058 low-temperature cryocooler, combined with multiple built-in image processing algorithms. With its high sensitivity and broad spectral response, it plays a vital role in advanced applications such as high-temperature defect detection, forest fire prevention, and other demanding scenarios.
640×512 mainstream resolution for clear and detailed imaging
Broad 2.5–4.8μm spectral coverage for diverse applications
CameraLink image interface
Supports RAW/YUV image data output
Optional 50 Hz/100 Hz frame rates for capturing fast-moving targets
| Model | GAVIN GC615WMA |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | Cut-on: ≤2.5μm, Cut-off: ≥4.8μm(50% Response) |
| IR Detector NETD(23℃) | 16mK(F2) 18mK(F4) |
| Effective Pixel Rate | ≥99.76% |
| Frame Rate | 50Hz/100Hz |
| Digital Video | Standard:DVP/LVDS/USB2.0@50Hz Option:Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Cooling Time(23℃) | ≤8min@24V |
| Steady Power (23℃) | ≤10W |
| Size(mm) | 142×58.8×80 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
| Focal Length | 55mm/F2 |
