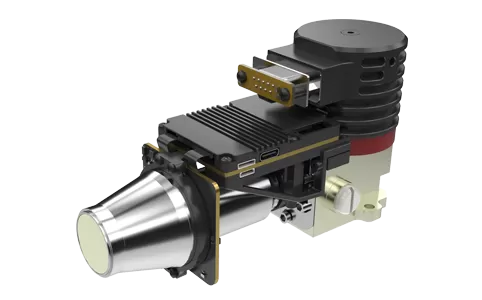

The GAVIN GC625LC infrared camera core integrates a Type-II Superlattice (T2SL) 640×512/25μm LWIR cooled infrared detector. Compared to traditional 640×512/15μm LWIR camera cores, the larger 25μm pixel size capture more thermal radiation, delivering superior image quality. The camera core incorporates multiple image processing algorithms, making it especially suitable for reconnaissance and detection in challenging environments, such as dusty conditions or strong sunlight with reflective interference. It also supports various mainstream video interfaces, providing easy development and flexible integration, making it an ideal choice for long-range, high-performance LWIR system integration.
Developed with a 640×512/25μm LWIR cooled infrared detector for stable imaging and wide application
Enhanced with next-generation image algorithms including DRC, 2D/3D noise reduction, and EE edge enhancement for clearer imaging
Strong resistance to dust and glare, adaptable to complex environments
Capable of detecting low-temperature objects
Type-II Superlattice technology with excellent quantum efficiency and uniformity
Multiple image interfaces: CameraLink/USB 3.0/GigE/HDMI/SDI/MIPI/Fiber
Flexible RAW/YUV image data output
| Model | GAVIN GC625LC LWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 640×512 |
| Pixel Size | 25μm |
| Spectral Response | 7.7μm±0.2μm～9.4μm±0.3μm |
| IR Detector NETD(23℃) | 20mK(F2) |
| Image Processing | |
| Frame Rate | 100Hz/200Hz |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Digital Video | Standard: DVP Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤18W |
| Cooling Time(23℃) | ≤9min |
| Size(mm) | 148×59×81 |
| Weight(g) | ≤730 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | Fixed focus: 55mm/F2 |
