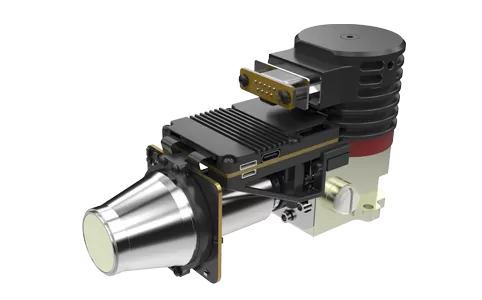

The GAVIN GC625MC MWIR cooled infrared camera core integrates a 640×512/25μm MWIR detector. With its large 25μm pixel size, it offers a greater infrared radiation sensing area and superior signal-to-noise ratio under the same array format. Equipped with multiple built-in image processing algorithms, it delivers clear infrared images even in total darkness or harsh weather conditions. The detector enables long-range detection and recognition of potential threats, while capturing richer details of close-range targets, meeting customers’ pursuit of high SNR and extended detection range.
Powered by a 640x512/25μm MWIR cooled infrared detector for stable image quality and broad compatibility
Compare with same resolution offerings, the camera core with 25μm large pixel size delivers clearer images and a higher signal-to-noise ratio (SNR)
Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity
MWIR cooled thermal imaging technology ensures excellent adaptability and consistency across applications
Outstanding thermal sensitivity with NETD ≤ 10mK
Supports CameraLink interface with RAW/YUV image data output
Multiple continuous zoom optical configurations available for different needs
| Model | GAVIN GC625MC MWIR Cooled Infrared Camera Core |
| Indicators | |
| Resolution | 640x512 |
| Pixel Size | 25μm |
| Spectral Response | 3.7μm±0.2μm～4.8μm±0.2μm |
| IR Detector NETD(23℃) | 10mK(F2) |
| Image Processing | |
| Frame Rate | 50Hz/100Hz |
| Digital Zoom | 1× to 8× continuous digital zoom |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | DRC, 2D/3D Image Noise Reduction, EE |
| Electrical | |
| Analog Video | PAL/NTSC |
| Digital Video | Standard:DVP/LVDS/USB2.0@50Hz Option:Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| External Sync | Standard: LV-TTL Option: RS422/LVDS |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Power Supply | 24V±4V |
| Steady Power Consumption(23℃) | ≤18W |
| Cooling Time(23℃) | ≤9min |
| Size(mm) | 148×59×81 |
| Weight(g) | ≤730 |
| Operating Temperature | -40℃~+71℃ |
| Optical Lens | |
| Lens Options | 40mm/F2 |
