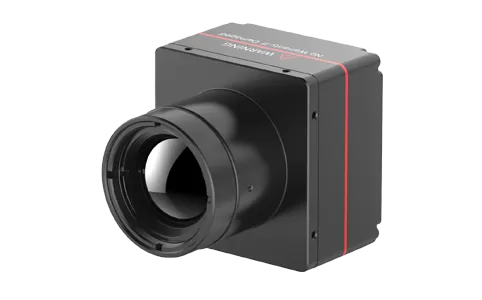

Developed based on a 1280×1024/12μm ceramic-packaging detector, this megapixel thermal imaging camera core offers a wider field of view, longer detection distance, and more detailed target imaging. Featuring a shutterless design, it effectively eliminates image stuttering and noise issues commonly encountered during observation. The iSE1212 supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, electronic zoom, and other features. With a variety of video interfaces and lenses for easy integration, it delivers a first-class imaging experience for high-end infrared applications.
Delivers megapixel thermal imaging with smooth, lag-free performance
Wider field of view, larger angle coverage, longer detection range, and enhanced detail
No shutter calibration required during use, eliminating image stuttering common in traditional designs
Silent operation helps avoid detection by targets
Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
Compatible with a wide range of optical lenses and extended components, enabling easy secondary development and flexible system integration
| Model | iSE1212 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 1280×1024 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤30mK | |
| Image Processing | ||
| Digital Frame Rate | 25Hz/30Hz/50Hz | |
| Start-up Time | 7s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Image Brightness | Auto/Manual | |
| Image Contrast | Auto/Manual | |
| Compensation Mode | Manual | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB | |
| Digital Video Interface | DVP16/BT.1120/USB3.0/MIPI-DSI-4LANE | |
| Extension Components | USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 1.2W@25Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 38×39×28 | 68×69×30.2 |
| Bare Core Weight(g) | 46.9±3 | 88.5±3 |
| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm | Fixed Focus Athermal: 50mm/100mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 15~100mm/25~75mm/28~90mm/30~180mm/25~225mm/30~300mm |
| Shutter Components | Optional | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Vibration | 5.35g, Random Vibration,, 3-axis | |
| Impact | Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times | 500g@0.4ms |
| Certification | ROHS2.0/REACH | |
