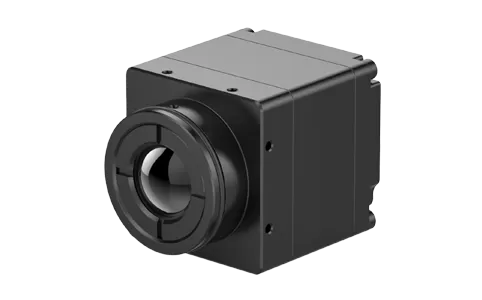

Based on our self-developed high-performance 384×288/12μm ceramic-packaging thermal detector, the iSE412 infrared camera core eliminates the need for shutter calibration, effectively resolving issues of stuttering and noise during observation. To meet diverse needs of users, the iSE412 supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, electronic zoom, and other features. It also offers a variety of video interfaces and lenses for easy integration. The overall size of the powerful camera core is less than 25.4×25.4×22.7mm, with a bare core weight under 26g, delivering smooth and stable detection experience even under limited space and strict conditions.
No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems
Silent operation ensures discreet use without mechanical noise
Total system dimensions as small as 25.4×25.4×22.7 mm, bare core weight≤26±1.5g
Space-saving structural design allows flexible system layout and integration
Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
Compatible with multiple optical lenses and extension components for easy secondary development and system customization
| Model | iSE412 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 384×288 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤30mK | |
| Image Processing | ||
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Image Brightness | Auto/Manual | |
| Image Contrast | Auto/Manual | |
| Compensation Mode | Manual | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 25.4×25.4×22.7 | φ36×24.3 |
| Bare Core Weight(g) | 26±1.5g | 28±1.5g |
| Optical Lens | Fixed Focus Athermal: 4.9mm/9.1mm/13.4mm/19mm | Fixed Focus Athermal: 25mm/35mm |
| Shutter Components | Optional | |
| Vibration | 5.35g, Random Vibration,, 3-axis | |
| Impact | Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
