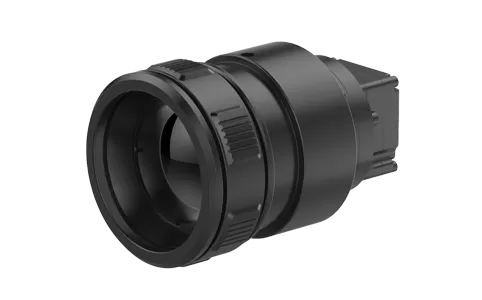

Based on our self-developed high-performance 640×512/12μm ceramic-packaging thermal detector, the iSE612 infrared camera core eliminates the need for shutter calibration, effectively resolving issues of stuttering and noise during observation. To meet diverse needs of users, the iSE612 supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, electronic zoom, and other features. It also offers a variety of video interfaces and lenses for easy integration. The SWaP-optimized camera core delivers exceptional image quality in limited space.
No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems
Adopts high cost-effective ceramic-packaged detector
Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g
Space-saving structural design allows flexible system layout and integration
Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays
Compatible with multiple optical lenses and extension components for easy secondary development and system customization
| Model | iSE612 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 640×512 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤30mK | |
| Image Processing | ||
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 25.4×25.4×22.7mm | φ36×24.3mm |
| Bare Core Weight(g) | 26±1.5 | 28±1.5 |
| Optical Lens | Fixed Focus Athermal: 4.9mm/9.1mm/13.4mm/19mm | Fixed Focus Athermal: 25mm/35mm/50mm/70mm/100mm Manual Focus: 25mm/35mm/50mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 15~75mm/20~100mm/28~90mm/30~150mm/30~180mm/25~225mm |
| Shutter Components | Optional | |
| Vibration | 5.35g, Random Vibration, 3-axis | |
| Impact | Half Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
