In industrial sites such as metallurgy and petrochemicals, equipment like furnaces, furnace walls, and heaters operate under high-temperature combustion conditions with strong flame interference. Traditional detection methods struggle to effectively observe the internal structures or surface conditions of such equipment.

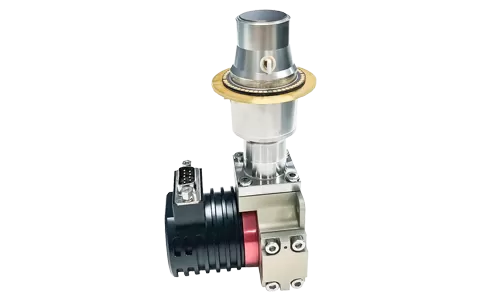

The LFD330Z5 infrared detector is specifically designed for high-temperature observation in flame environments, operating in the 3.8–4.1μm spectral band. It offers excellent flame penetration capability, enabling precise imaging and monitoring of surfaces such as furnace interiors and walls, significantly improving inspection efficiency and reducing operational risks.
Specifically designed for high-temperature flame environments with excellent penetration
Enables accurate imaging of critical areas such as furnace interiors and walls
Based on a high-performance MWIR cooled detector, offering high reliability and versatility
Typical NETD≤20mK, providing high thermal sensitivity
Supports integration on handheld, mobile, or fixed platforms
| Model | LFD330Z5 |
| Resolution | 320×256 |
| Pixel Size | 30μm |
| Spectral Response | 3.8μm±0.1μm～4.1μm±0.1μm |
| Typical NETD | 20mK(F3) |
| Effective Pixel Rate | ≥99.5% |
| Cooling Time(23℃) | ≤7min@12V |
| Power Consumption(23℃) | Peak power consumption: ≤15W@12V Stable power consumption: ≤7W@12V |
| Size(mm) | 142×58.5×71 |
| Weight(g) | ≤600 |
| Operating Temperature | -45℃~+71℃ |
| Storage Temperature | -55℃~+71℃ |
| *MTTF | ≥10000h |
a) Optional 640×512/15μm
b) MTTF measured under laboratory conditions with a 63% failure rate
