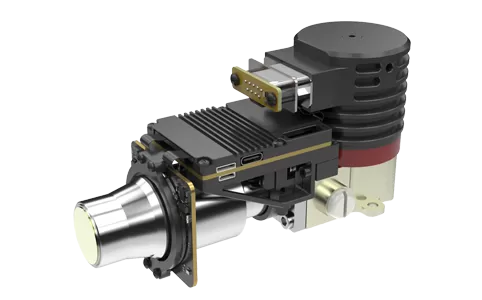

Sulfur hexafluoride (SF₆) is widely used in high-voltage power equipment and has a strong greenhouse effect, while ammonia is a common industrial refrigerant that is highly toxic and easily volatile. The LFM330C2 gas leak detection infrared camera core, equipped with the high-performance LFD330C2 detector based on Type-II Superlattice (T2SL) technology, operates in the 10.3–10.9μm spectral band. It offers high sensitivity, excellent stability, and flexible integration, enabling long-range, non-contact, visualized detection of SF₆, ammonia, ethylene, and other typical industrial gases. It provides an efficient solution for equipment safety monitoring and environmental management.
Equipped with the self-developed LFD330C2 LWIR infrared detector, optimized for SF₆/NH₃ detection
Covers SF₆, NH₃, and 26+ industrial gases within the same spectral band, providing a broad identification range
Integrated gas-enhancement HSM algorithm significantly improves image contrast
Clear details enable precise localization of even small leaks
Fully self-developed core components with integrated cost advantage
Multiple interfaces supported, including RAW / YUV image output, enabling fast system integration
Sulfur hexafluoride (SF₆), Anhydrous ammonia, Ethyl cyanoacrylate (“super glue”), Chlorine dioxide, Acetic acid, R-12 (Freon), Ethylene, Methyl ethyl ketone (MEK), Acetyl chloride, Allyl bromide, Allyl chloride, Allyl fluoride, Methyl bromide, R-11 (Freon), Furan, Hydrazine, Methylsilane, Methyl vinyl ketone, Acrolein, Propylene, Tetrahydrofuran, Trichloroethylene, Uranium hexafluoride, Vinyl chloride, Vinyl cyanide, Vinyl ether
| Model | LFM330C2 |
| Resolution | 320×256 |
| Pixel Size | 30μm |
| Spectral Response | 10.3μm±0.1μm～10.9μm±0.1μm |
| Typical NETD | 20mK(F1.5) |
| Effective Pixel Rate | ≥99.5% |
| Frame Rate | 60Hz |
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Cooling Time(23℃) | ≤8min@24V |
| Steady Power (23℃) | ≤13W |
| Size(mm) | ≤142×58.5×80 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
| Storage Temperature | -55℃~+71℃ |
| Focal Length | 25mm |
