Gas leaks have surfaced as a prominent concern in the petrochemical industry. Traditional detection devices are limited in range and efficiency, making it difficult to achieve intuitive and precise identification of common VOC leaks such as methane and benzene.

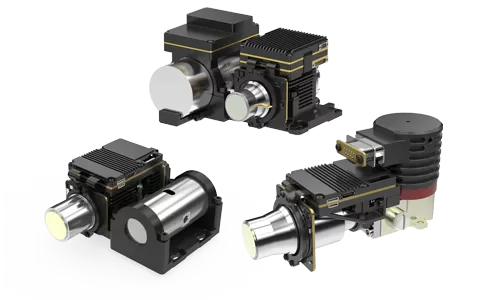

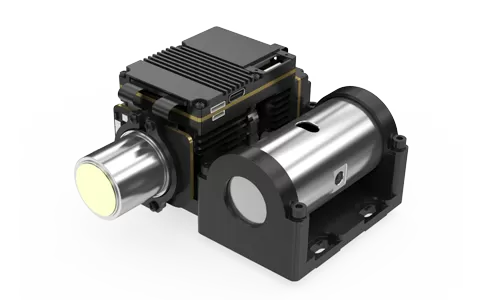

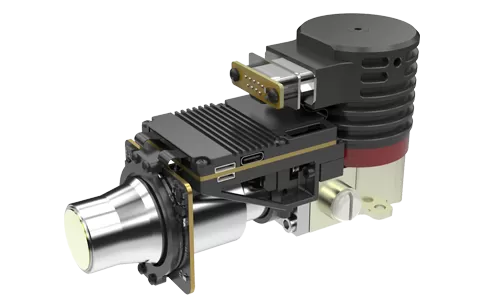

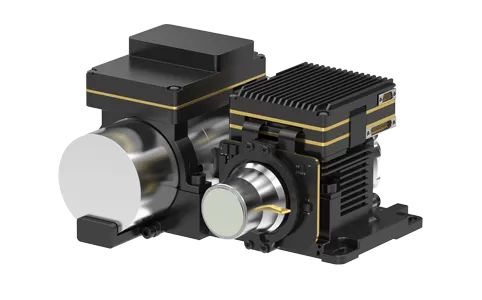

The LFM330Z3 gas leak detection infrared camera core, deeply integrated with the LFD330Z3 detector, is specifically designed for VOCs detection, operating in the 3.2–3.5μm spectral band. It supports long-range, visualized detection of small leaks of methane, benzene, ethanol, and other VOCs, enabling efficient gas monitoring and safety production warning.
Developed based on a high-performance MWIR cooled detector, offering high reliability and versatility
Typical NETD≤10mK, meeting requirements for long-range or tiny leak detection
Equipped with a gas-enhancement HSM algorithm, significantly improving micro-leak detection efficiency
Fully self-developed components with multiple interfaces, supporting RAW / YUV image output
Benzene, Butane, Ethane, Ethylbenzene, Ethylene, Heptane, Hexane, Isoprene, Methyl ethyl ketone (MEK), Methane, Methanol, Methyl isobutyl ketone, Octane, Pentane, 1-Pentane, Propane, Propylene, Toluene, Xylene
| Model | LFM330Z3 | ||
| Resolution | 320×256(Optional: 640×512) | ||
| Pixel Size | 30μm | ||
| Spectral Response | 3.2μm±0.1μm～3.5μm±0.1μm | ||
| Typical NETD | 10mK(F1.5) | ||
| Effective Pixel Rate | ≥99.5% | ||
| Frame Rate | 30Hz | ||
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber | ||
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE | ||
| Cryocooler | RS058I | LS713 | LS734 |
| Cooling Time(23℃) | ≤8min@12V | ≤6min30s@12V | ≤6min30s@24V |
| Steady Power (23℃) | ≤10W | ≤11W | ≤16W |
| Size(mm) | ≤142×58.5×80 | ≤108×116×73 | ≤130×131×80 |
| Weight(g) | ≤680 | ≤800 | ≤1610 |
| Operating Temperature | -40℃~+71℃ | ||
| Focal Length | 23mm/55mm/25-75mm | ||
