In industrial sites such as metallurgy and petrochemicals, equipment like furnaces, furnace walls, and heaters operate under high-temperature combustion conditions with strong flame interference. Traditional detection methods struggle to effectively observe the internal structures or surface conditions of such equipment.

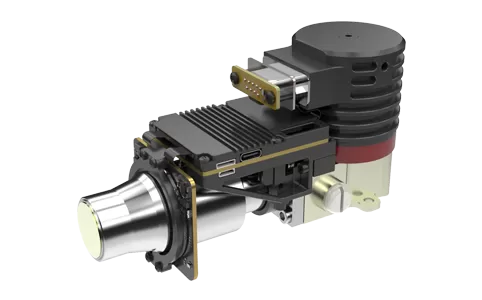

The LFM330Z5 infrared flame camera core, developed based on the self-developed LFD330Z5 detector, is specifically designed for high-temperature observation in flame environments, operating in the 3.8–4.1μm spectral band. It offers excellent flame penetration capability, enabling precise imaging and monitoring of furnace interiors, walls, and other high-temperature surfaces, significantly improving inspection efficiency and reducing operational risks.
Specifically designed for high-temperature flame environments with excellent penetration
Enables accurate imaging of critical areas such as furnace interiors and walls
High-sensitivity optical configuration combined with gas-enhancement HSM algorithms delivers clearer images with more detailed features
Fully self-developed core components with multiple interfaces, supporting RAW/YUV image output
Supports integration on handheld, mobile, or fixed platforms
| Model | LFM330Z5 |
| Resolution | 320×256(Optional: 640×512) |
| Pixel Size | 30μm |
| Spectral Response | 3.8μm±0.1μm～4.1μm±0.1μm |
| Typical NETD | 20mK(F3) |
| Effective Pixel Rate | ≥99.5% |
| Frame Rate | 30Hz/60Hz |
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Cooling Time(23℃) | ≤8min@12V |
| Steady Power (23℃) | ≤10W |
| Size(mm) | ≤142×58.5×80 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
| Focal Length | 23mm/55mm |
