During carbon capture, power equipment operation, and industrial production, CO₂ leaks not only jeopardize carbon reduction targets but can also cause equipment faults as a result of the long-term accumulation of carbon dioxide. Traditional detection methods are often “invisible, unsafe, and prone to omissions”, making accurate detection challenging.

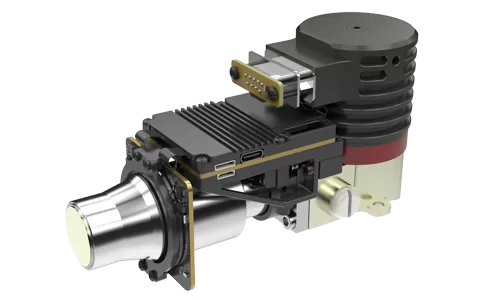

The LFM330Z6 gas leak detection infrared camera core is developed based on the self-designed LFD330Z6 detector, operating in the 4.2–4.4μm spectral band. Specifically engineered for ultra-low concentration CO₂ leak detection, it enables long-range, non-contact, and visualized monitoring with high sensitivity and intuitive recognition — effectively overcoming the limitations of traditional methods in identifying trace CO₂ leaks.
Developed based on the self-designed LFD330Z6 detector, suitable for CO₂ and gases within the same spectral band
NETD as low as 10mK, enabling precise detection of small leaks at long distances
Equipped with a gas-enhancement HSM algorithm, making even subtle leaks clearly visible
Fully self-developed core components with RAW/YUV image output, ensuring seamless system integration
CO₂ can be used as a tracer gas for indirect hydrogen leak detection, further expanding the application boundaries of the device
| Model | LFM330Z6 |
| Resolution | 320×256 |
| Pixel Size | 30μm |
| Spectral Response | 4.2μm±0.1μm～4.4μm±0.1μm |
| IR Detector NETD | 10mK(F1.5) |
| Effective Pixel Rate | ≥99.5% |
| Frame Rate | 30Hz/60Hz |
| Digital Video | Standard: DVP/LVDS/USB2.0 Option: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber |
| Communication | Standard: USB2.0/LV-TTL Option: RS422/CAN/USB3.0/GigE |
| Cooling Time(23℃) | ≤8min@12V |
| Steady Power (23℃) | ≤10W |
| Size(mm) | ≤142×58.5×80 |
| Weight(g) | ≤680 |
| Operating Temperature | -40℃~+71℃ |
| Focal Length | 23mm/55mm |
