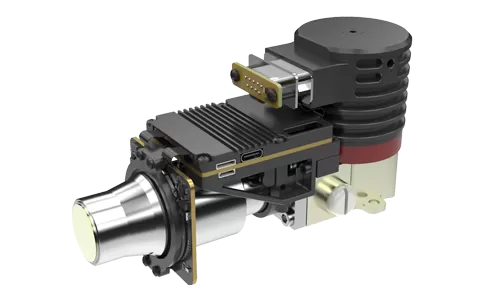

LFM330Z7 MWIR 320×256 30μm MCT Optical Gas Imaging (OGI) Infrared Camera Core for CO
LFM330Z7 MWIR 320×256 30μm MCT Optical Gas Imaging (OGI) Infrared Camera Core for CO

LFM330Z7
MWIR 320×256/30μm MCT Optical Gas Imaging (OGI) Infrared Camera Core for CO

Carbon monoxide (CO) is a common gas in high-temperature metallurgy, petroleum refining, and similar processes. It is colorless, odorless, highly diffusive, and toxic, while traditional gas detection methods often suffer from blind spots and high miss rates.

The LFM330Z7 gas leak detection infrared camera core, developed based on the LFD330Z7 detector, operates in the 4.5–4.7μm spectral band, which is suitable for detecting CO and other gases with similar infrared absorption features. The product features wide-area scanning, long-range detection, and visualized imaging, enabling precise leak localization. It can be easily integrated into various intelligent inspection devices, effectively improving hazard identification efficiency and enhancing industrial safety.

Main Features

High Sensitivity, Precise Leak Localization
High Sensitivity, Precise Leak Localization
  • Developed based on the self-developed LFD330Z7 detector, suitable for CO and gases with similar spectral features

  • NETD as low as 10mK, enabling precise detection of small leaks at long distances


Enhanced Imaging with Gas-Enhancement Algorithm
Enhanced Imaging with Gas-Enhancement Algorithm
  • Equipped with a gas-enhancement HSM algorithm, making even subtle leaks clearly visible

Rich Interfaces, Easy Integration
Rich Interfaces, Easy Integration
  • Fully self-developed core components, offering great cost advantages

  • Multiple interfaces supported, including RAW and YUV image output

Specifications

ModelLFM330Z7
Resolution320×256(Optional: 640×512)
Pixel Size30μm
Spectral Response4.5μm±0.1μm~4.7μm±0.1μm
Typical NETD10mK(F1.5)
Effective Pixel Rate≥99.5%
Frame Rate30Hz/60Hz
Digital VideoStandard: DVP/LVDS/USB2.0
Option: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
CommunicationStandard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Cooling Time(23℃)≤8min@12V
Steady Power (23℃)≤10W
Size(mm)≤142×58.5×80
Weight(g)≤680
Operating Temperature-40℃~+71℃
Focal Length23mm/55mm


Applications

Learn More >>

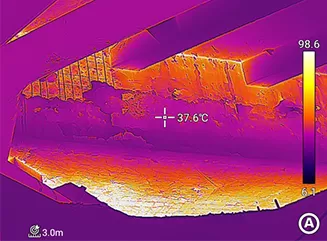

Continuous Casting Temperature Control
Continuous Casting Temperature Control

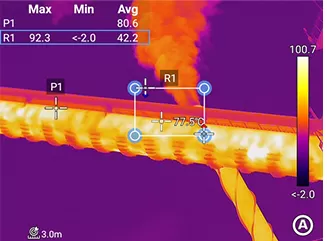

Heat Exchanger Steam Visualization
Heat Exchanger Steam Visualization
IRI
IRI

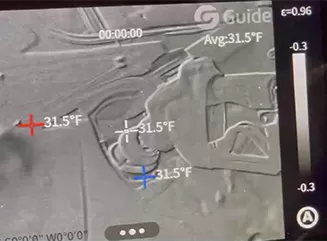

Vapor & Fuel Leak Detection
Vapor & Fuel Leak Detection
