VOCs (Volatile Organic Compounds) are widespread in petrochemicals and other industrial scenarios, characterized by high volatility, flammability, explosiveness, or toxicity. Traditional detection methods often rely on close-range contact, which limits the search range and provides non-intuitive responses.

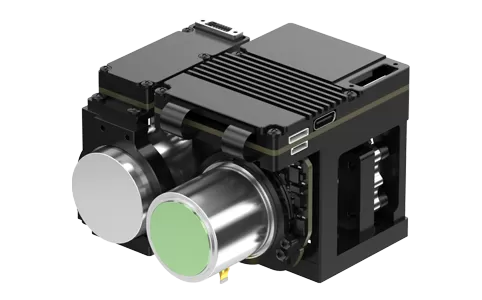

The LFM615HZ3 is designed based on the infrared absorption characteristics of VOCs, operating in the range of 3.2–3.5μm. Leveraging T2SL and HOT technologies, it stands out with miniaturization, lightweight design, and low power consumption. Equipped with advanced algorithms and rich interfaces, it not only delivers clear imaging but also enables rapid adaptation to multiple platforms. OEM customers can efficiently achieve long-range, non-contact, visualized leak detection of VOCs, significantly enhancing operational safety and intelligence levels.
Developed with LFD615HZ3 HOT infrared detector, achieving smaller size, lighter weight, and lower power consumption
Compatible with various miniaturized system platforms and low-power designs
Equipped with a 640×512 large-format detector for richer imaging details
Integrated AI-HSM algorithm, ensuring clear identification of even minor leaks
100% self-developed components with significant cost advantages through integration
Multiple interfaces supported, including RAW/YUV image output
Supports leak detection for 19+ VOCs gases, including:
Benzene, Butane, Ethane, Ethylbenzene, Ethylene, Heptane, Hexane, Isoprene, Methyl Ethyl Ketone (MEK), Methane, Methanol, Methyl Isobutyl Ketone, Octane, Pentane, 1-Pentene, Propane, Propylene, Toluene, Xylene.
| Model | LFM615HZ3 |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Spectral Response | 3.2μm±0.1μm～3.5μm±0.1μm |
| Typical NETD | 25mK(F1.5) |
| Effective Pixel Rate | ≥99.5% |
| Frame Rate | 30Hz |
| Digital Video | USB3.0/GigE/MIPI |
| Communication | USB3.0/GigE/RS422 |
| Cooling Time(23℃) | ≤5min@12V |
| Steady Power (23℃) | ≤8.5W |
| Size(mm) | ≤71×72×52 |
| Weight(g) | ≤370 |
| Operating Temperature | -40℃~+71℃ |
| Focal Length | 23mm/55mm/25-75mm |
