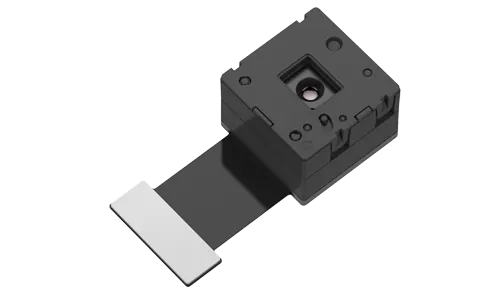

The TIMO112 is an uncooled infrared miniature module facing multiple industries. It features a self-developed 120×90/12μm wafer-level detector, along with a wafer-level optical lens and micro-electromagnetic valve shutter, enabling precise temperature data and heat distribution capture for specific target areas. Its exceptionally compact size, ultra-lightweight design at just 1.8g, and ultra-low power consumption make it highly suitable for integration into AIoT terminals, smart wearable devices, and mobile intelligent hardware—applications with strict requirements on size, weight, and power. Balancing performance and cost, it is an ideal choice for popularizing infrared sensing technology.
Wafer-level packaged detector + wafer-level optics + micro-electromagnetic valve shutter
The smallest infrared thermal module, enabling minimal thermal imaging functionality with maximum cost efficiency
Compact size, lightweight, and low power consumption, ideal for integration into miniature devices
Ultra-low power design, consuming as little as 9mW
Smooth imaging with a frame rate of 25Hz
Supports SPI image interface, compatible with various embedded platforms
Compliant with RoHS 2.0 environmental standards
| Model | TIMO112 |
| Resolution | 120×90 |
| Pixel Size | 12μm |
| Spectral Response | 8~14μm |
| Focus Mode | Focus Free |
| Lens(HFOV/FL) | 50°/ 1.6mm |
| Weight (g) | 1.8 |
| Size (mm, without FPC) | 12.6mm×12.6mm×8.8mm |
| Number of PINs | 40PIN |
| Output Data | 14bit Raw |
| Frame Rate | 25Hz |
| Temperature Measurement | |
| Temperature Measurement Range | -20℃~+550℃(-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Environmental Adaptability & Certification | |
| Operating Temperature | -40℃~+70℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | RoHS 2.0 / Reach |
